RA
MOQ: 4 pcs
Standard Residential Booster Pumps
The RA Series is suitable for pressure boosting in standard residential water supply applications, including pre-boosting for water heaters, as well as water supply in kitchens and bathrooms, detached houses, and top-floor apartments.
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawings
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
-
Automatic Start/Stop Control
-
Low Noise Operation
-
Optional Pump Head Materials
-
Supports OEM Customization: Voltage, plug, color, nameplate, packaging, and housing material
Model Instruction
Technical Table
|
Pump Model
|
Power
(W)
|
Power
(HP)
|
Max.Head
(M)
|
Max.Flow
(L/min)
|
Inlet/Outlet
(G)
|
Pump Size:MM
|
||
|
L
|
A
|
B
|
||||||
|
RA15-90
|
120
|
1/6
|
9
|
25
|
G3/4"
|
160
|
109
|
130
|
|
RA15-110
|
135
|
1/5
|
10
|
28
|
G3/4"
|
160
|
123
|
140
|
|
RA20-150
|
400
|
1/2
|
15
|
67
|
G1"
|
200
|
126
|
170
|

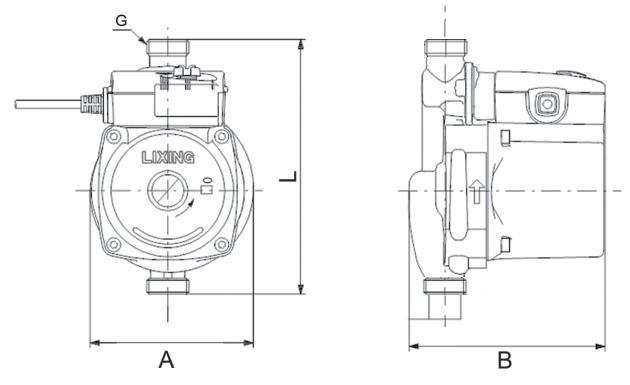

Dimensional Drawings

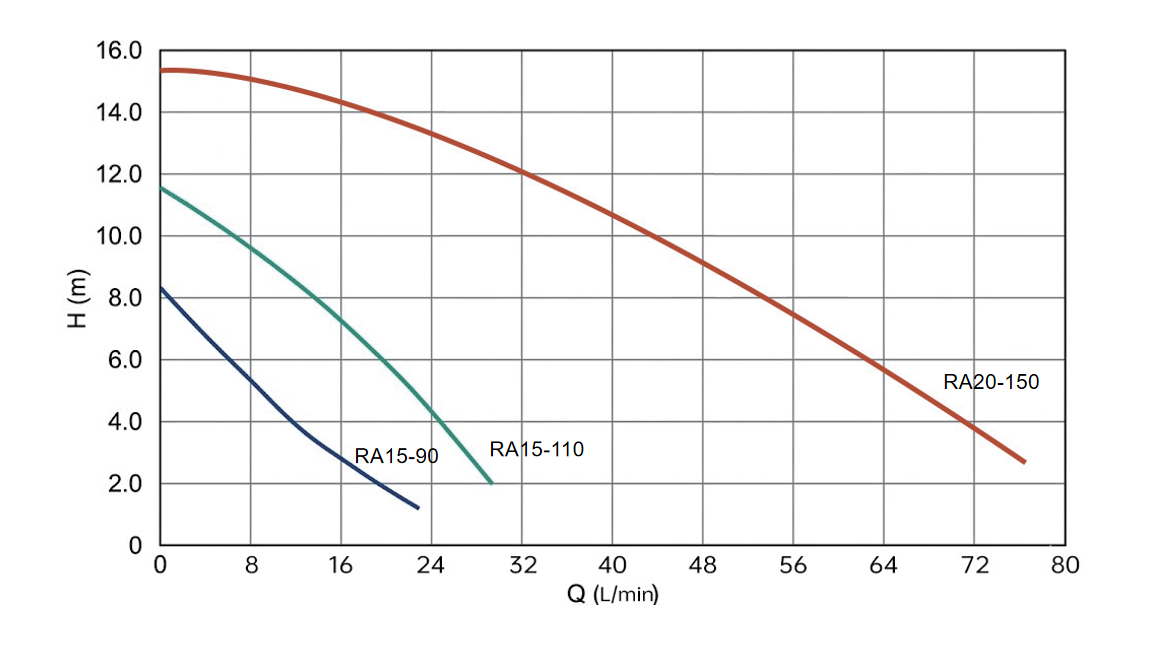

Performance Curves

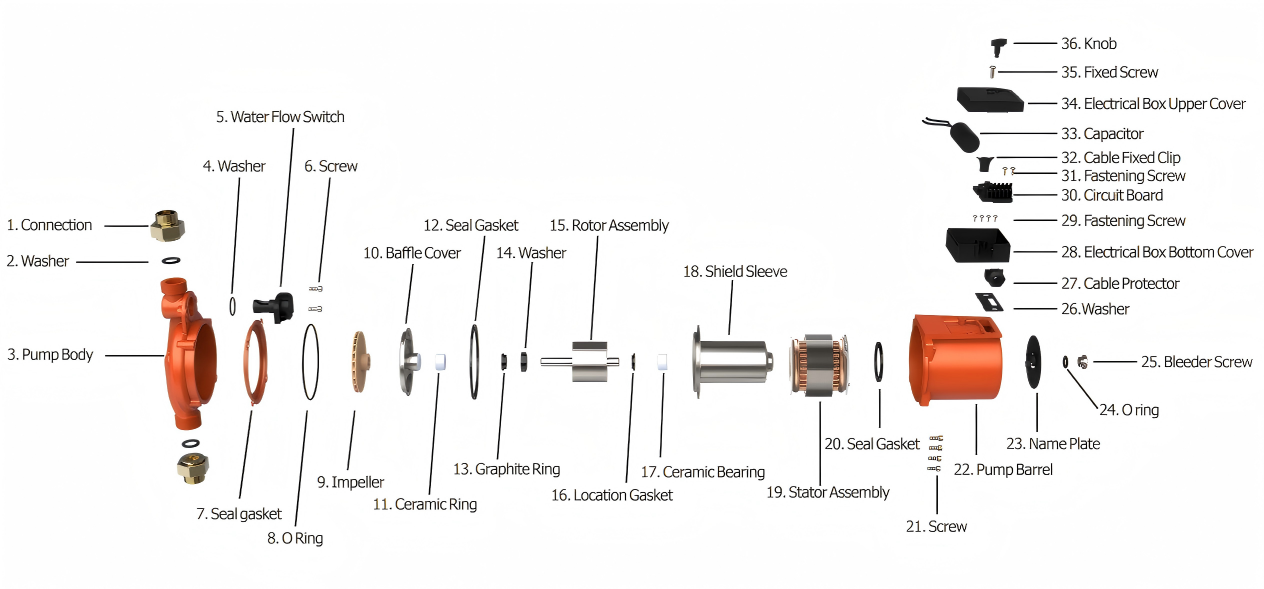

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
RA15-90
|
21.05
|
40
|
24
|
29
|
8
|
|
RA15-110
|
23.35
|
40
|
24
|
33
|
8
|
|
RA20-150
|
21.15
|
42.5
|
35.3
|
19.6
|
4
|
