Whole-House Supply Circulation Pumps
The LPS Series is designed for whole-house water circulation in apartments, duplex residences, and villas, helping to improve issues related to unstable water pressure.
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawings
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Three-Speed Control: Easy adjustment and commissioning
• Multiple Pump Body Materials: Available in cast iron, brass, and stainless steel
• Low-Noise Operation: Noise level ≤ 45 dB

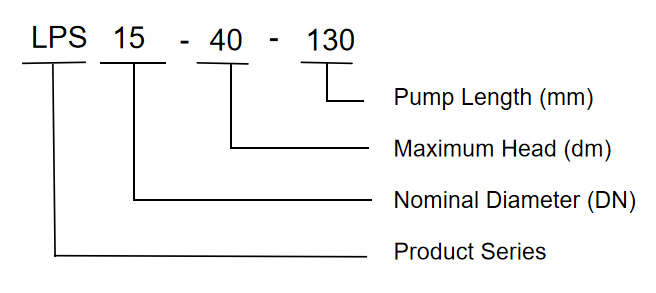

Model Instruction
Technical Table
|
Pump
Model
|
Power
(W)
|
Max.Head
(M)
|
Max.Flow
(L/min)
|
Inlet/Outlet
(G)
|
Pump Size:MM
|
||
|
L
|
B
|
A
|
|||||
|
LPS15-40-130
|
85/55/35
|
4/3/2
|
30/20/17
|
G3/4"
|
130
|
126
|
125
|
|
LPS15-60-130
|
100/65/45
|
6/5/4
|
37/25/17
|
G3/4"
|
130
|
126
|
125
|
|
LPS15-90
|
120/59/28
|
9/4.5/2.3
|
25/13/7
|
G3/4"
|
140
|
132
|
124
|
|
LPS15-110
|
145/106/74
|
11/8.5/5
|
30/27/13
|
G3/4"
|
140
|
142
|
140
|
|
LPS20-40-130
|
85/55/35
|
4.5/4/3
|
33/25/13
|
G1"
|
130
|
126
|
131
|
|
LPS20-60-130
|
100/65/45
|
6/4/1.5
|
42/30/17
|
G1"
|
130
|
126
|
131
|
|
LPS20-120-180
|
285/220/145
|
12/10/7
|
60/42/30
|
G1"
|
180
|
153
|
154
|
|
LPS20-150-180
|
400/304/172
|
15/14/11
|
67/50/33
|
G1"
|
180
|
159
|
168
|
|
LPS25-40-130
|
85/55/35
|
4.5/3.5/2
|
50/25/10
|
G1-1/2"
|
130
|
126
|
132
|
|
LPS25-40-180
|
85/55/35
|
4.5/3.5/2
|
50/25/10
|
G1-1/2"
|
180
|
126
|
132
|
|
LPS25-60-130
|
100/65/45
|
6/4.5/2.5
|
55/33/17
|
G1-1/2"
|
130
|
126
|
132
|
|
LPS25-60-180
|
100/65/45
|
6/4.5/2.5
|
55/33/17
|
G1-1/2"
|
180
|
126
|
132
|
|
LPS25-70-130
|
125/105/82
|
6.8/5.5/4.5
|
60/50/34
|
G1-1/2"
|
130
|
126
|
142
|
|
LPS25-70-180
|
125/105/82
|
6.8/5.5/4.5
|
60/50/34
|
G1-1/2"
|
180
|
126
|
142
|
|
LPS25-80-180
|
245/210/140
|
8/6.5/4
|
133/92/40
|
G1-1/2"
|
180
|
145
|
176
|
|
LPS25-120-180
|
285/220/145
|
12/9/4.5
|
63/45/25
|
G1-1/2"
|
180
|
155
|
153
|
|
LPS32-40-180
|
85/55/35
|
4.5/3.5/2
|
55/27/17
|
G2"
|
180
|
126
|
134
|
|
LPS32-60-180
|
100/65/45
|
6/4.5/3
|
60/42/25
|
G2"
|
180
|
126
|
136
|
|
LPS32-70-180
|
125/105/82
|
6.6/5.5/4.5
|
67/50/42
|
G2“
|
180
|
126
|
144
|
|
LPS32-80-180
|
245/210/140
|
8/6.5/4
|
175/125/67
|
G2"
|
180
|
145
|
176
|

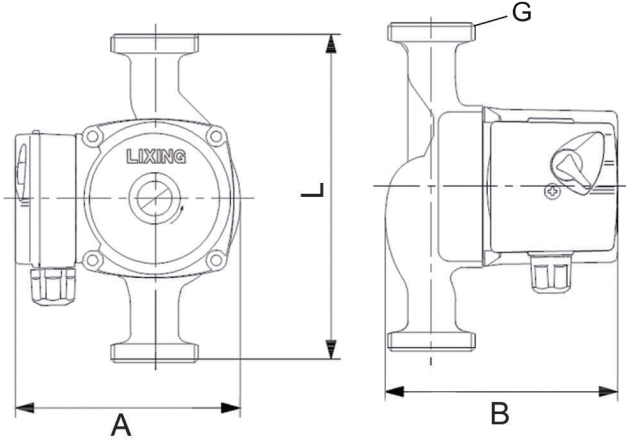

Dimensional Drawings

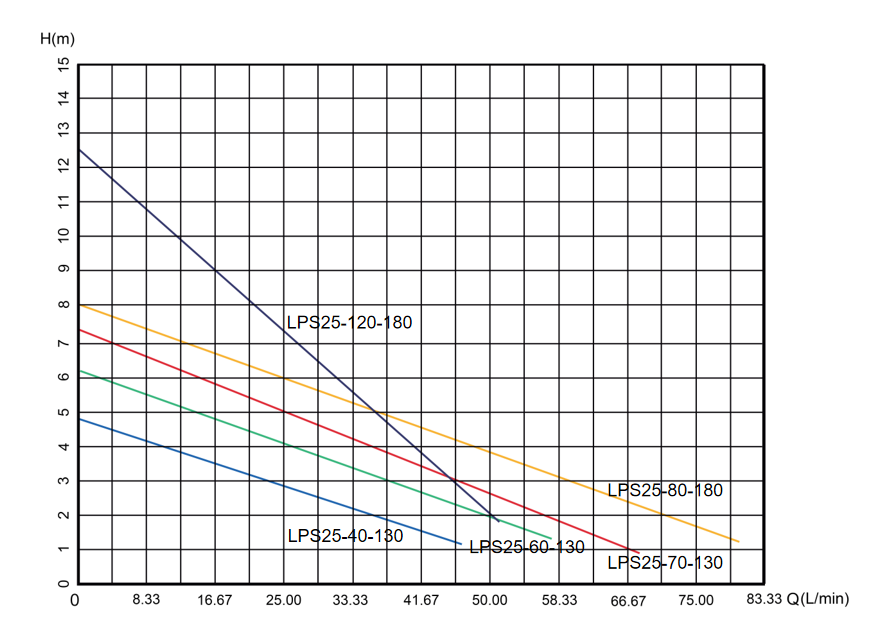

Performance Curves

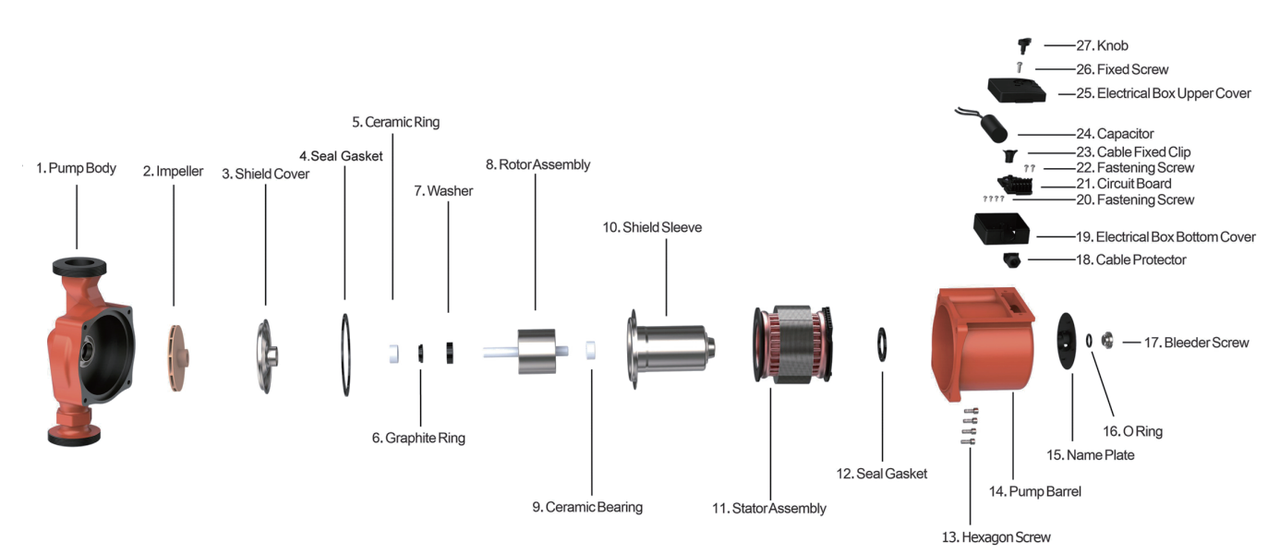

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
LPS15-40-130
|
18.3
|
33
|
28.5
|
29.5
|
8
|
|
LPS15-60-130
|
19.5
|
33
|
28.5
|
29.5
|
8
|
|
LPS15-110
|
24.9
|
38.8
|
29.1
|
31.1
|
8
|
|
LPS20-40-130
|
20.5
|
33
|
28.5
|
29.5
|
8
|
|
LPS20-60-130
|
20.6
|
33
|
28.5
|
29.5
|
8
|
|
LPS20-120-180
|
19.5
|
45
|
29.7
|
18.3
|
4
|
|
LPS20-150-180
|
22.3
|
42.5
|
35.3
|
19.6
|
4
|
|
LPS25-40-130
|
21.25
|
33
|
28.5
|
29.5
|
8
|
|
LPS25-40-180
|
22.3
|
41
|
28
|
30
|
8
|
|
LPS25-60-130
|
22.6
|
33
|
28.5
|
29.5
|
8
|
|
LPS25-60-180
|
23.9
|
41
|
28
|
30
|
8
|
|
LPS25-70-130
|
24.2
|
32
|
31
|
34
|
8
|
|
LPS25-70-180
|
26.3
|
42
|
28
|
32
|
8
|
|
LPS25-80-180
|
19.3
|
46
|
30.5
|
20.2
|
4
|
|
LPS25-120-180
|
18.9
|
46
|
30.5
|
20.2
|
4
|
|
LPS32-40-180
|
22.2
|
33
|
28.5
|
29.5
|
8
|
|
LPS32-60-180
|
26.6
|
41
|
28
|
30
|
8
|
|
LPS32-70-180
|
29.8
|
42
|
28
|
32
|
8
|
|
LPS32-80-180
|
21.3
|
46
|
30.5
|
20.2
|
4
|
