LPF
MOQ: 4 pcs
Flanged Circulation Pumps
The LPF Series is a flange-connected circulation pump designed for water circulation and transfer in heating and domestic hot water systems. It is suitable for engineering installations as well as replacement applications in existing distribution channels.
- Product Advantages
- Model Instruction
- Technical Table
- Optional Accessories
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Stable Flanged Connection: Reliable sealing performance, suitable for long-term operation in engineering piping systems
• Easy Installation & Replacement: Standard flange design, compatible with both new installations and like-for-like replacements
• Adjustable Flow: Multi-speed or multi-condition adjustment for flexible adaptation to different system resistance requirements
• Low-Noise Operation: Suitable for installation in residential equipment rooms or near living areas

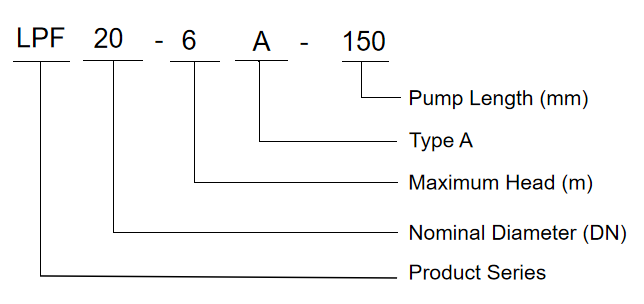

Model Instruction
Technical Table
|
Pump Model
|
Power (W)
|
Voltage (V)
|
DN
|
Flow (L/min)
|
Head (M)
|
Pump Size: MM
|
||
|
L
|
B
|
H
|
||||||
|
LPF15-6A-150
|
130/100/55
|
110/60
|
15
|
39 / 25 / 10
|
7/4.5/2.5
|
150
|
130
|
127
|
|
LPF20-6A-150
|
130/100/55
|
110/60
|
20
|
59 / 29 / 14
|
7/4.5/2.5
|
150
|
130
|
127
|
|
LPF25-6B-165
|
140/100/55
|
110/60
|
25
|
60 / 34 / 17
|
7.5/5/2.5
|
165
|
130
|
152
|
|
LPF25-6C-165
|
140/100/55
|
110/60
|
25
|
60 / 34 / 17
|
7.5/5/2.5
|
165
|
130
|
130
|
|
LPF20-8C-165
|
280/210/130
|
110/60
|
25
|
100/68/42
|
9/8/5m
|
165
|
140
|
166
|
|
LPF25-8C-165
|
280/210/130
|
110/60
|
40
|
100/68/42
|
9/8/5m
|
165
|
140
|
166
|
|
LPF40-8F-210
|
265/220/150
|
110/60
|
40
|
134 / 84 / 50
|
8.5/7/4
|
210
|
140
|
184
|

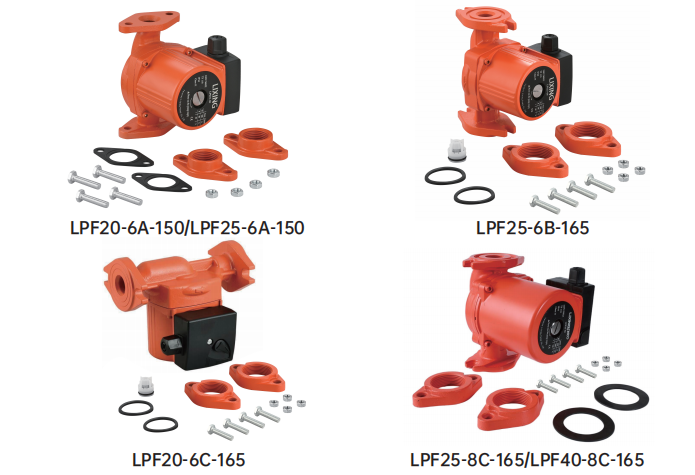

Optional Accessories

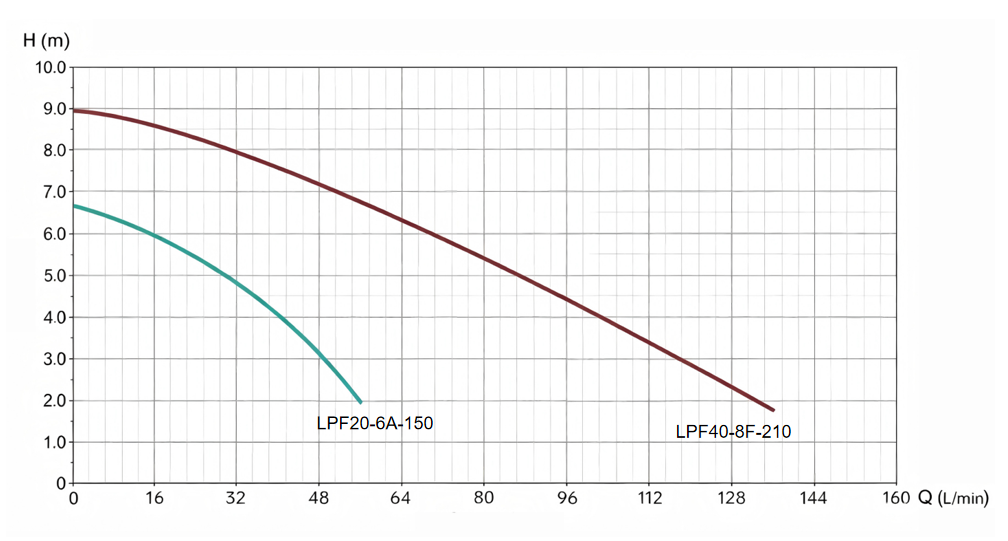

Performance Curves

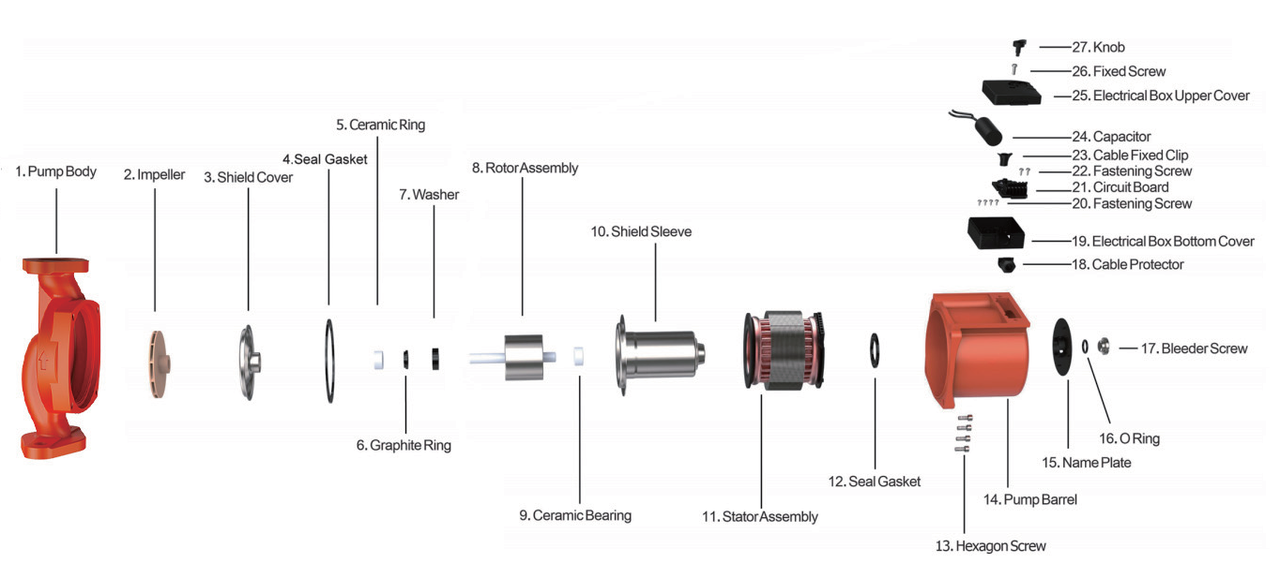

Exploded View
Package Information
|
Pump Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
Material
|
|
LPF20-6A-150
|
14.4
|
49
|
39
|
20.3
|
4
|
Foam Box
|
|
LPF25-6B-165
|
14.7
|
49
|
39
|
20.3
|
4
|
Foam Box
|
|
LPF25-6C-165
|
32.55
|
41
|
28
|
30
|
4
|
Carton
|
|
LPF40-8F-210
|
6.8
|
23
|
16
|
24
|
1
|
Honeycomb Carton
|
