LPM
MOQ: 4 pcs
High-Efficiency Circulation Pumps
The LPM Series is designed for markets and projects with higher requirements for quiet operation, energy efficiency, and overall energy performance.
It is suitable for villas, large residential units, central hot water systems, guesthouses, small restaurants, and light commercial piping networks with complex circulation conditions.
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawing
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Permanent Magnet Motor
• Automatic Power Adjustment
• Ultra-Quiet Operation
• Wide Voltage Compatibility
• Designed for higher comfort levels and improved energy efficiency requirements

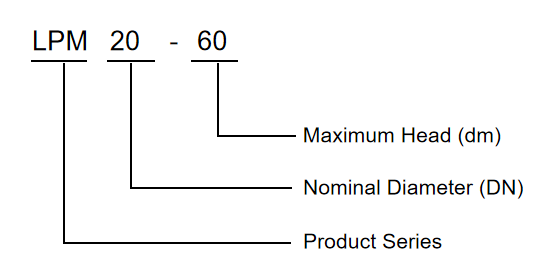

Model Instruction
Technical Table
|
Pump Model
|
Power(W)
|
Max.Head (M)
|
Max.Flow (L/min)
|
Inlet/Outlet (G)
|
Pump Size: MM
|
||
|
L
|
B
|
A
|
|||||
|
LPM20-60
|
45
|
6.5
|
47
|
G1"
|
130
|
138
|
127
|
|
LPM20-80
|
60
|
8
|
54
|
G1"
|
130
|
138
|
127
|
|
LPM20-110
|
90
|
10.5
|
62
|
G1"
|
130
|
138
|
127
|
|
LPM20-130
|
120
|
13
|
69
|
G1"
|
130
|
138
|
127
|
|
LPM25-60
|
45
|
6.5
|
59
|
G1-1/2"
|
130/180
|
138
|
127
|
|
LPM25-80
|
60
|
8.2
|
67
|
G1-1/2"
|
130/180
|
138
|
127
|
|
LPM25-110
|
90
|
11
|
77
|
G1-1/2"
|
130/180
|
138
|
127
|
|
LPM25-130
|
120
|
12.5
|
87
|
G1-1/2"
|
130/180
|
138
|
127
|
|
LPM32-60
|
45
|
6
|
69
|
G2"
|
180
|
138
|
127
|
|
LPM32-70
|
60
|
7
|
77
|
G2"
|
180
|
138
|
127
|
|
LPM32-90
|
90
|
9
|
90
|
G2"
|
180
|
138
|
127
|
|
LPM32-120
|
120
|
11.5
|
102
|
G2"
|
180
|
138
|
127
|

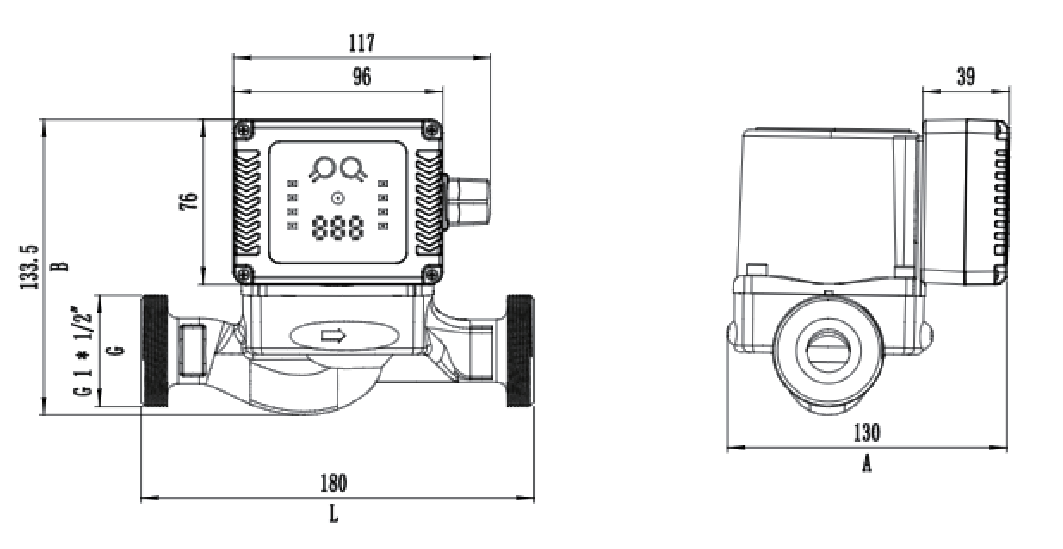

Dimensional Drawing

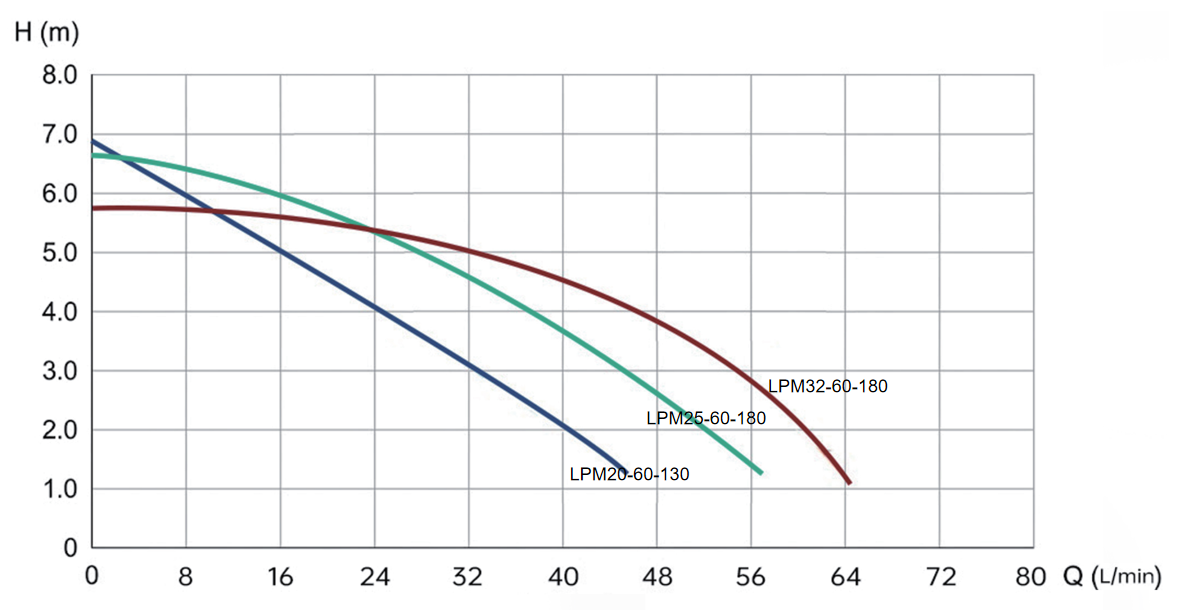

Performance Curves

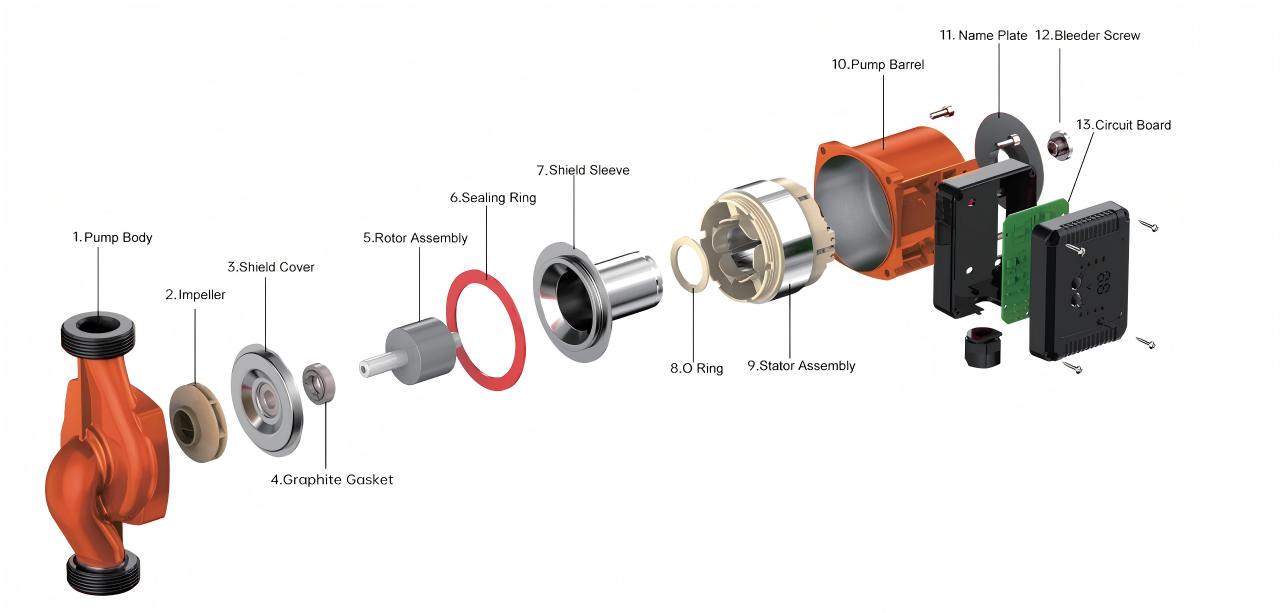

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
LPM20-60
|
20.25
|
33
|
28.5
|
29.5
|
8
|
|
LPM20-80
|
20.25
|
33
|
28.5
|
29.5
|
8
|
|
LPM20-110
|
20.4
|
33
|
28.5
|
29.5
|
8
|
|
LPM20-130
|
20.4
|
33
|
28.5
|
29.5
|
8
|
|
LPM25-60
|
21.25
|
41
|
28
|
30
|
8
|
|
LPM25-80
|
21.25
|
41
|
28
|
30
|
8
|
|
LPM25-110
|
21.4
|
41
|
28
|
30
|
8
|
|
LPM25-130
|
21.4
|
41
|
28
|
30
|
8
|
|
LPM32-60
|
22.4
|
41
|
28
|
30
|
8
|
|
LPM32-70
|
22.4
|
41
|
28
|
30
|
8
|
|
LPM32-90
|
22.4
|
41
|
28
|
30
|
8
|
|
LPM32-120
|
22.6
|
41
|
28
|
30
|
8
|
