LXPRO80
MOQ: 4 pcs
Permanent Magnet Inverter Booster Pumps
• Constant pressure water supply for multi-outlet residential use (e.g., multiple bathrooms and fixtures)
• Stable temperature control at terminal points in villas and high-rise buildings
• Garden irrigation systems, water tower and storage tank systems (timed filling and automatic shut-off when full)
• Light commercial applications (e.g., restaurants, hotels, small factories)
• Cleaning and flushing systems
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawings
- Performance Curves
- Exploded View
- Package Information
- Related Products

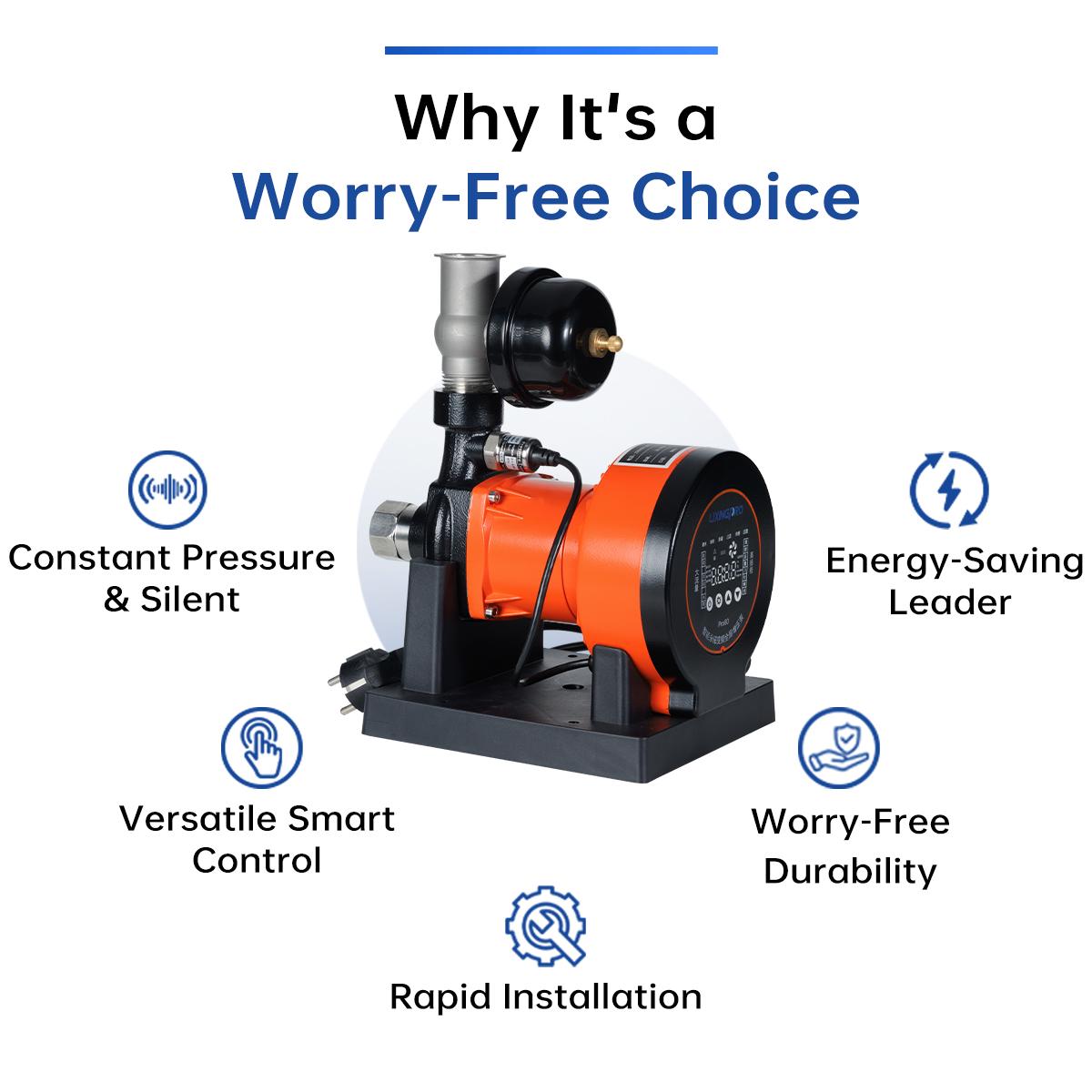

Product Advantages
• Automatic Start/Stop Function
• Integrated Temperature and Pressure Sensors
• Permanent Magnet Variable Frequency Technology – Intelligent and Energy-Efficient
• Three Operating Modes: Automatic / Manual / Water Tank Mode – Easily switchable to suit various application scenarios
• Comprehensive Protection: Includes overcurrent, over/under voltage, dry running, overheating, rotor lock, and sensor fault protection
• Constant Pressure Water Supply: Effectively eliminates temperature fluctuations (hot and cold water instability)
Model Instruction
Technical Table
|
Pump Model
|
Voltage(V)
|
Power
|
Motor Wire
|
Intlet
(Inch)
|
Outlet (Inch)
|
Max.Flow
(L/min)
|
Max.Head (M)
|
Speeds
|
|
|
W
|
HP
|
||||||||
|
LXPRO80
|
127/220
|
370
|
1/2
|
Copper
|
1
|
1
|
90
|
30
|
Freely Adjustable
|

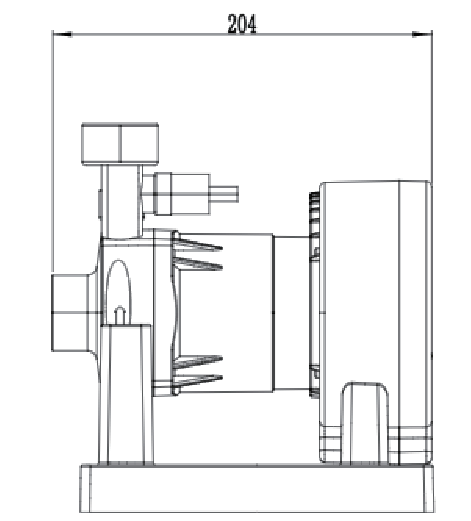

Dimensional Drawings

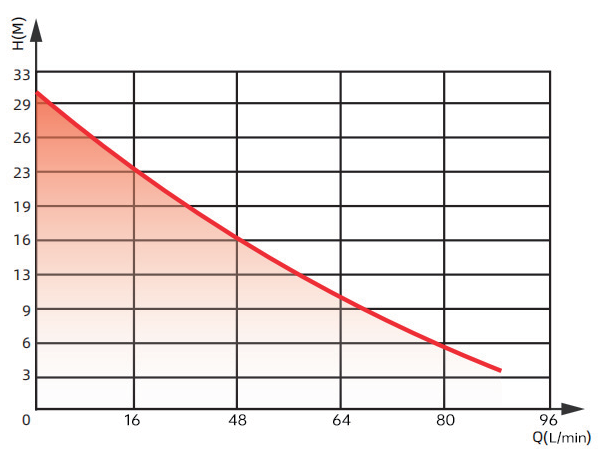

Performance Curves

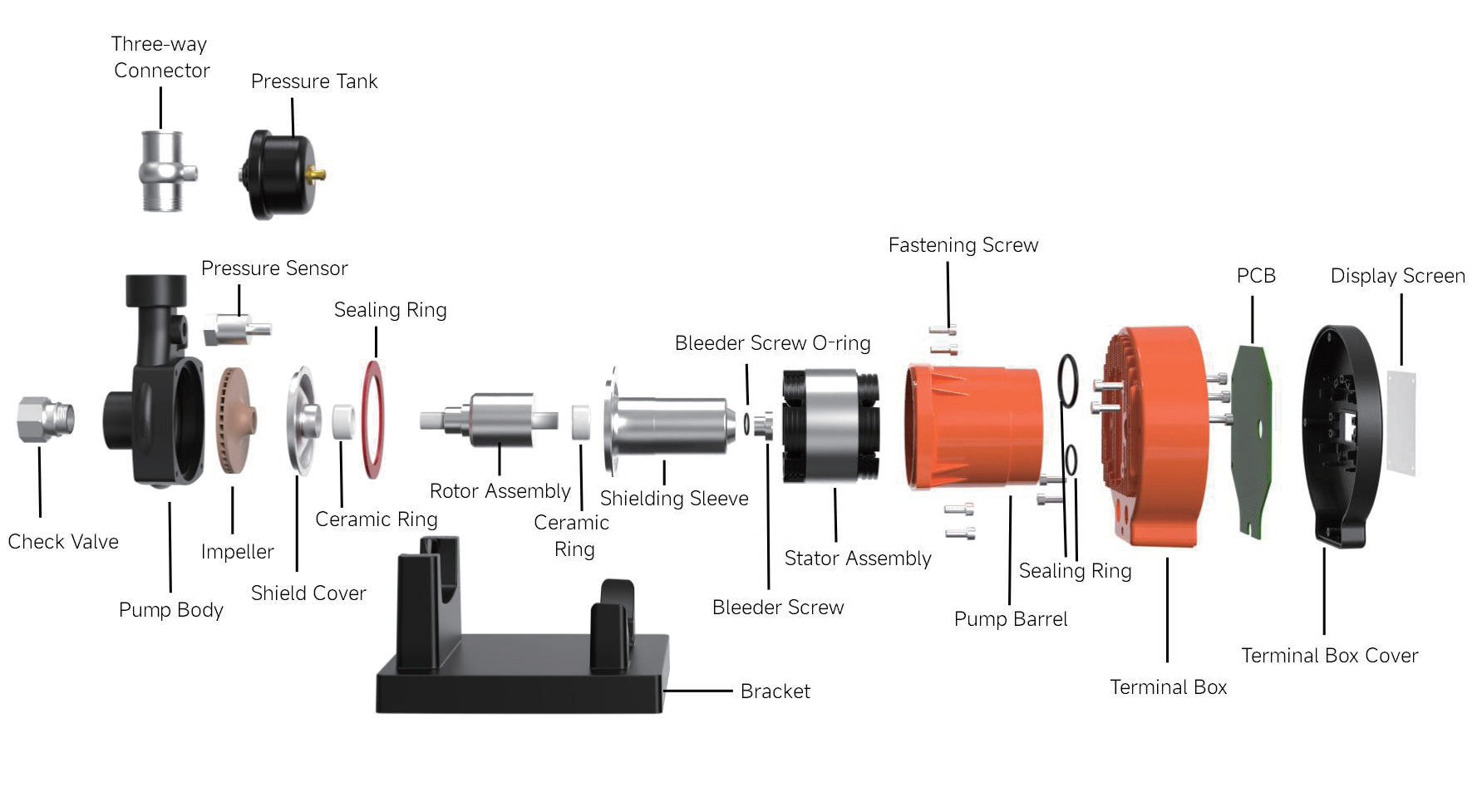

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
LXPRO80
|
20.25
|
46
|
37.5
|
23.2
|
4
|
