LXPRO60
MOQ: 4 pcs
Permanent Magnet Inverter Booster Pumps
• Domestic water pressure boosting in residential buildings
• High-rise apartments and villas
• Secondary water supply retrofitting in aging residential communities
• Auxiliary circulation for hot water and heating systems
• Small-scale commercial water supply (e.g., cafés, guesthouses)
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawings
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Energy Saving: Permanent magnet variable frequency technology delivers up to 50% energy savings compared to conventional solutions
• Three Power Levels: 40W / 70W / 90W
• Noise Level: ≤ 45 dB
• Premium Materials: Class H (180°C) high-temperature copper winding and NdFeB permanent magnet rotor
• Automation Capability: The PRO60 standalone unit can be integrated with optional accessories (including flow switch, pressure switch, or float switch) to enable fully automatic operation
Model Instruction
Technical Table
|
Pump Model |
Voltage(V)
|
Power
|
Motor Wire
|
Intlet
(Inch)
|
Outlet (Inch)
|
Max.Flow
(L/min)
|
Max.Head (M)
|
Speeds
|
|
|
W
|
HP
|
||||||||
|
LXPRO60
|
DC 24
|
90
|
1/8
|
Copper
|
1
|
1
|
50
|
17
|
3
|

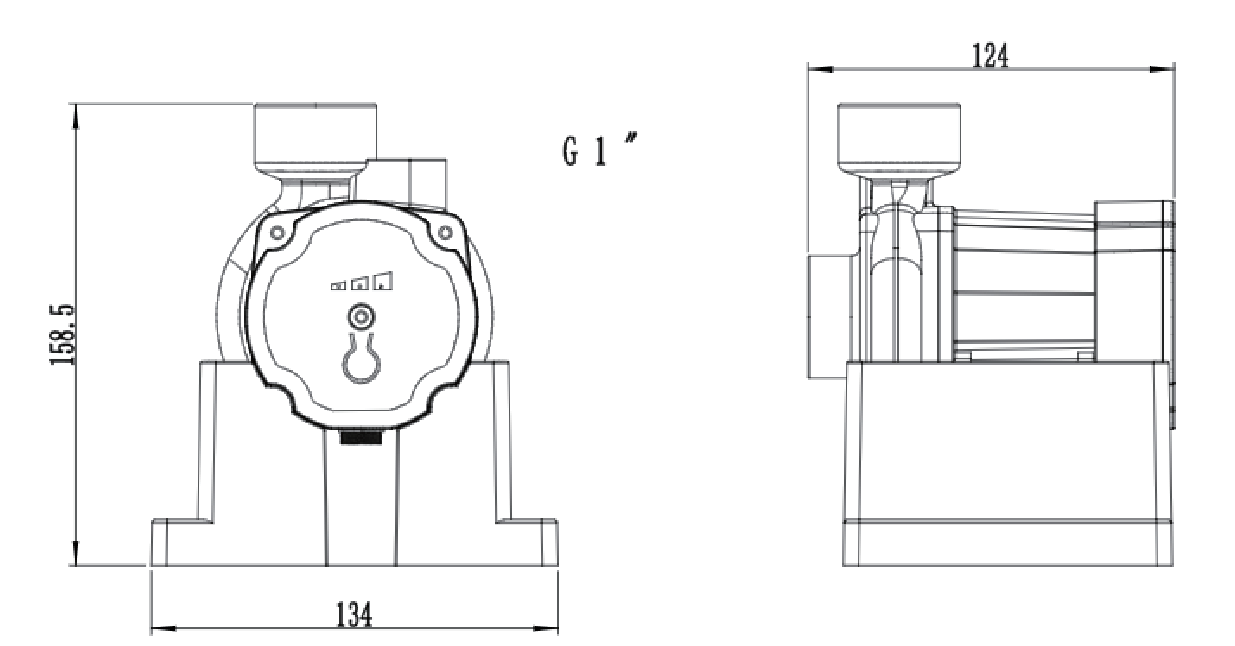

Dimensional Drawings

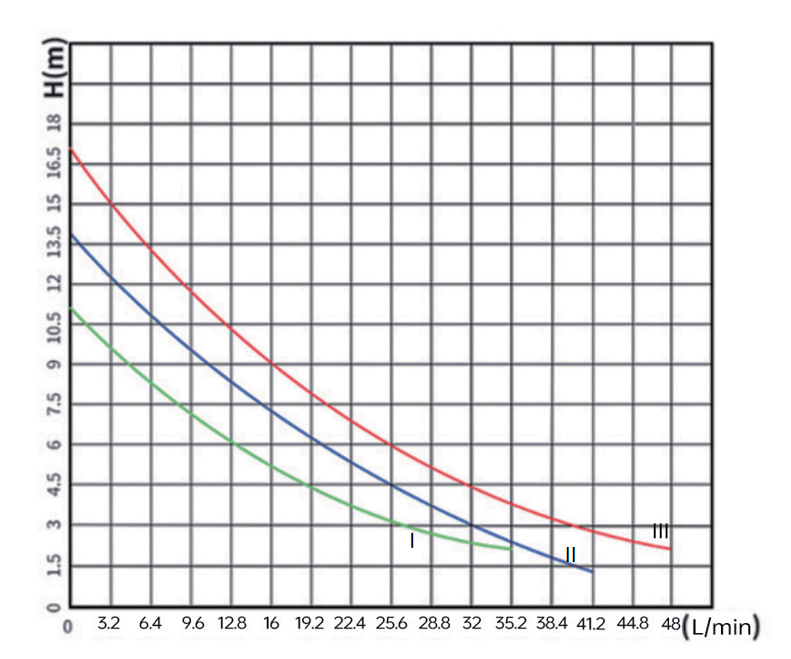

Performance Curves

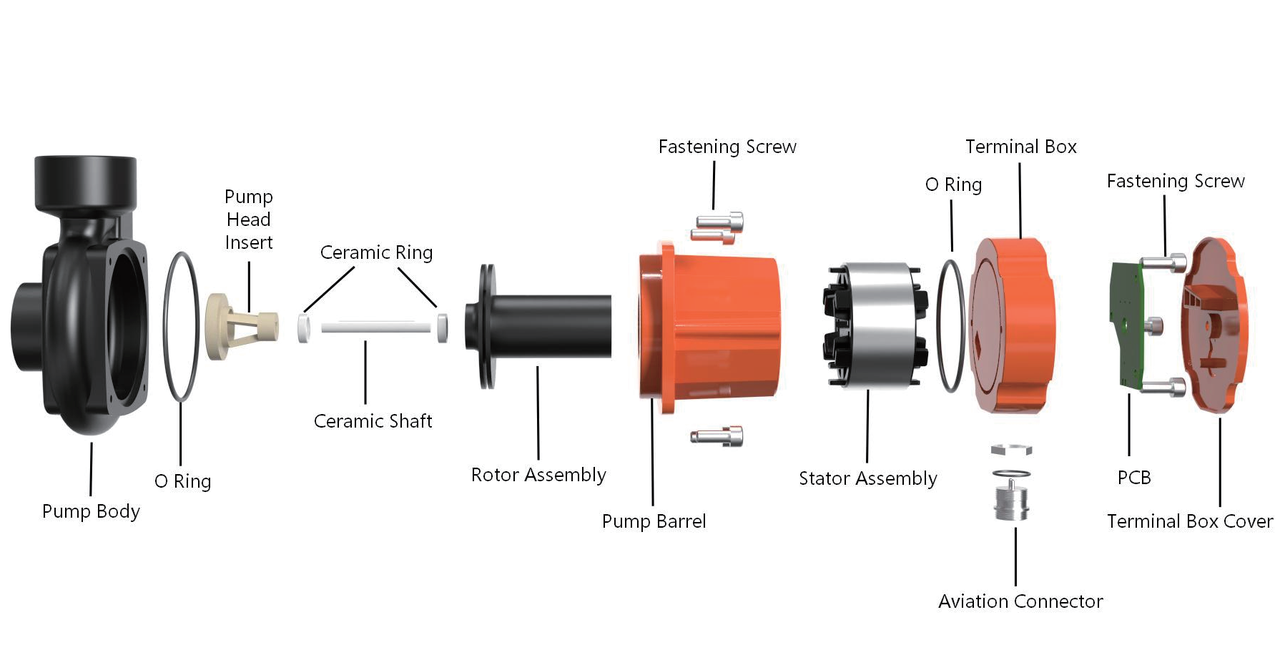

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
LXPRO60
|
14.15
|
37.2
|
28.4
|
34.6
|
8
|
