LPT
MOQ: 4 pcs
Hot Water Recirculation/Timer-controlled Circulation Pumps
The LPT Series is designed for domestic hot water recirculation systems. Through timer-based or on-demand circulation, it enables faster delivery of hot water to points of use, reducing waiting time and minimizing cold water waste. It is suitable for residential and light commercial hot water systems.
- Product Advantages
- Model Instruction
- Technical Table
- Optional Accessories
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Timer-Based Circulation: Operating periods can be set according to usage habits, reducing unnecessary operation and improving energy efficiency
• Stable Return Flow: Ensures continuous hot water recirculation, enhancing user comfort
• Low-Noise Design: Suitable for indoor or equipment room installation, minimizing disturbance to the living environment

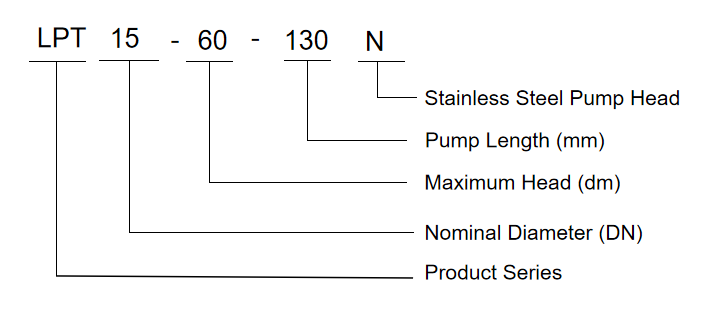

Model Instruction
Technical Table
|
Pump Model
|
Power (W)
|
Power (HP)
|
Max. Head (M)
|
Max.Flow
(L/min)
|
Inlet/Outlet (G)
|
|
LPT15-60/130
|
100
|
0.134
|
6
|
30
|
G3/4"
|
|
LPT15-60/130N
|
100
|
0.134
|
6
|
30
|
G3/4"
|

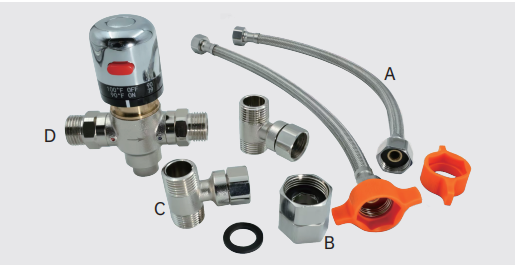

Optional Accessories

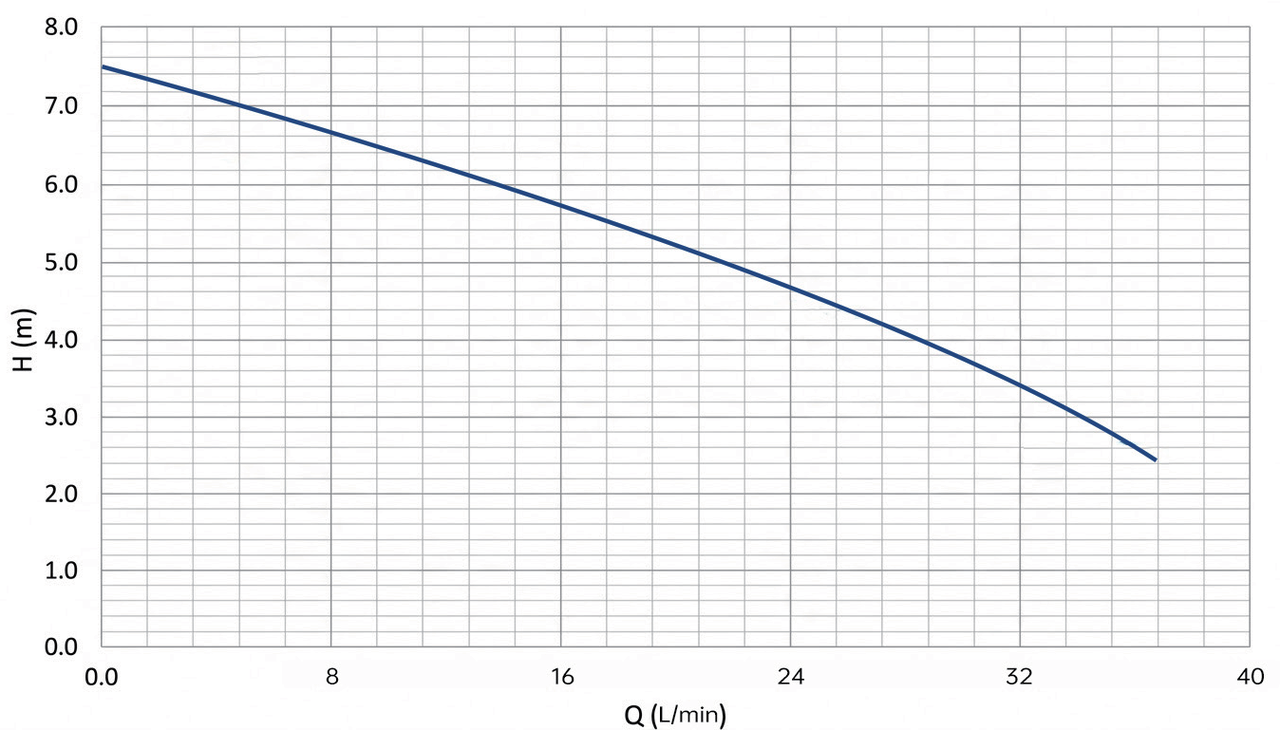

Performance Curves

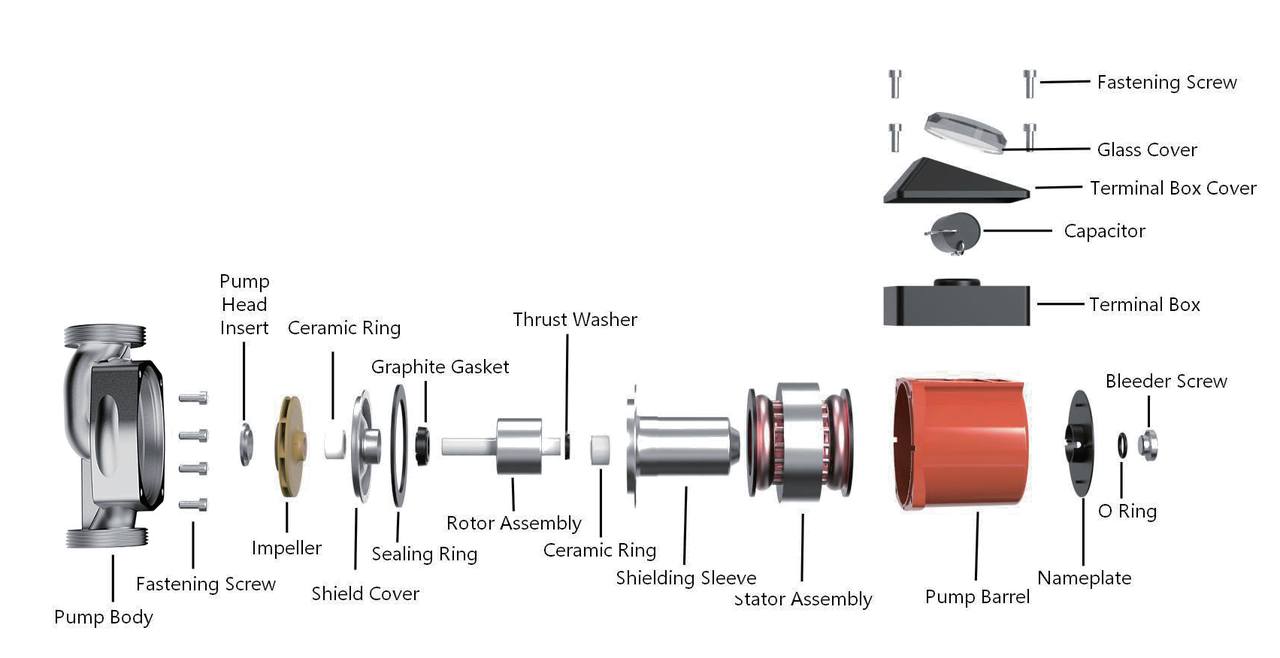

Exploded View

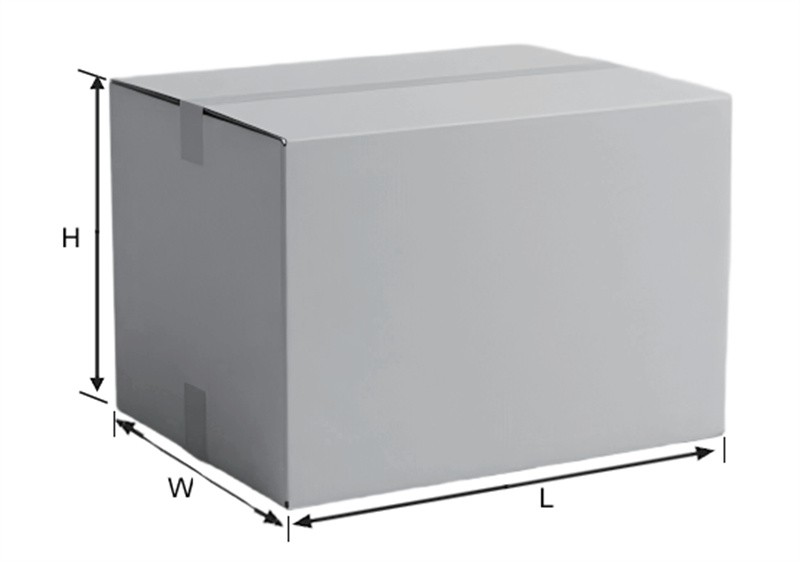

Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
LPT15-60/130
|
11.95
|
43.5
|
43.3
|
18.5
|
4
|
|
LPT15-60/130N
|
15.5
|
45
|
44
|
23.5
|
4
|
