UP
MOQ: 4 pcs
Wall-hung Boiler Circulation Pumps
The UP Series is specifically designed for wall-hung boiler systems, enabling efficient and stable hot water circulation.
Typical applications include residential and commercial heating systems, domestic hot water supply systems, and district heating systems.
- Product Advantages
- Model Instruction
- Technical Table
- Performance Curves
- Exploded View
- Package Information
- Related Products

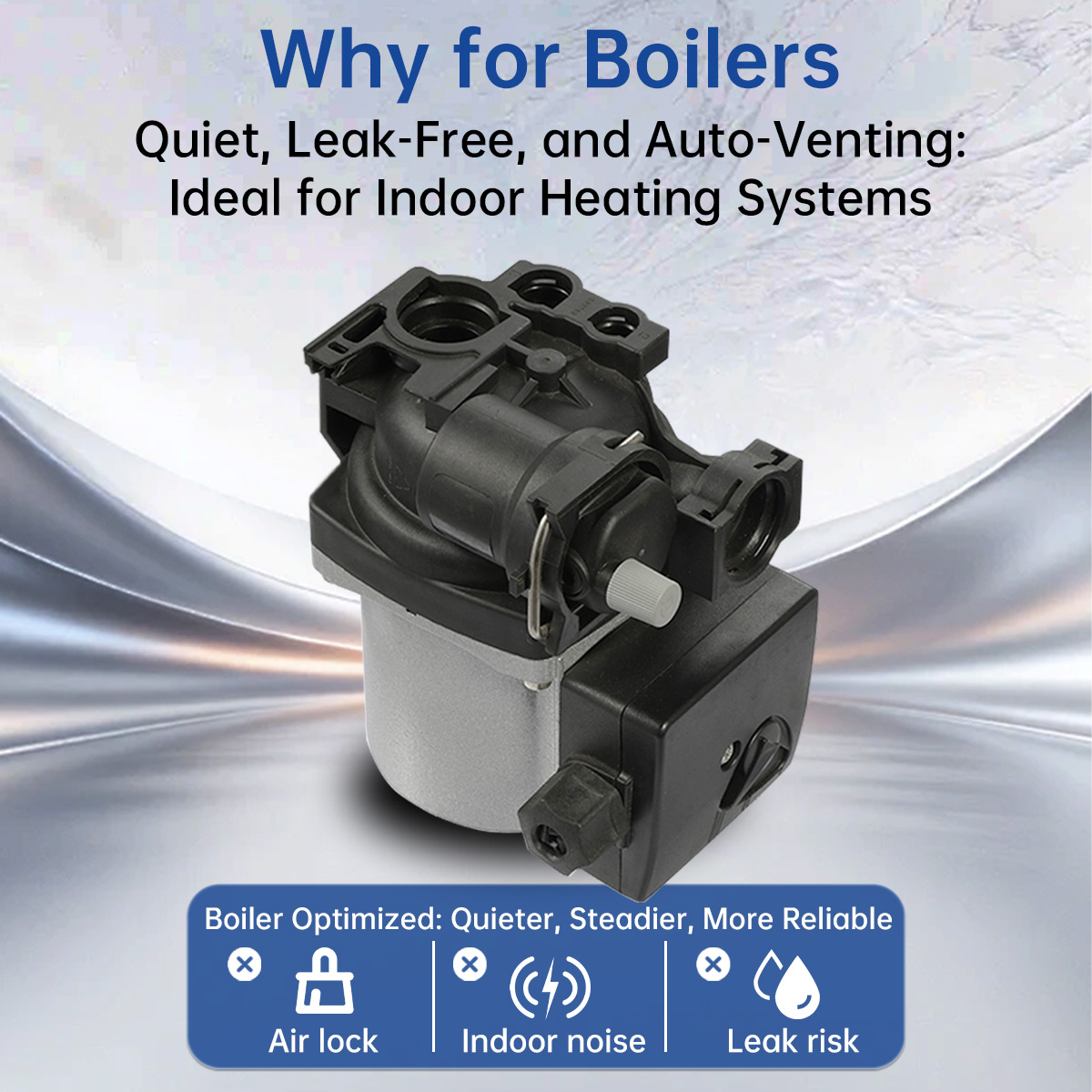

Product Advantages
• Low-Noise Design
• Sealed, Leak-Free Construction (Canned Motor Design)
• Integrated with Automatic Air Venting System
Model Instruction
Technical Table
|
Model
|
Input Power(W)
|
Current(A)
|
Capacitor (uF)
|
Max.Flow (L/min)
|
Max.Head (M)
|
Pump Head (M)
|
|
UP15-50
|
80/65/50
|
0.36/0.30/0.23
|
2.5
|
25
|
5
|
0–5
|
|
UP15-60
|
100/80/55
|
0.45/0.36/0.26
|
3
|
30
|
6
|
0–6
|
|
UP15-70
|
120/100/70
|
0.55/0.45/0.32
|
3
|
32
|
6.7
|
0–7
|

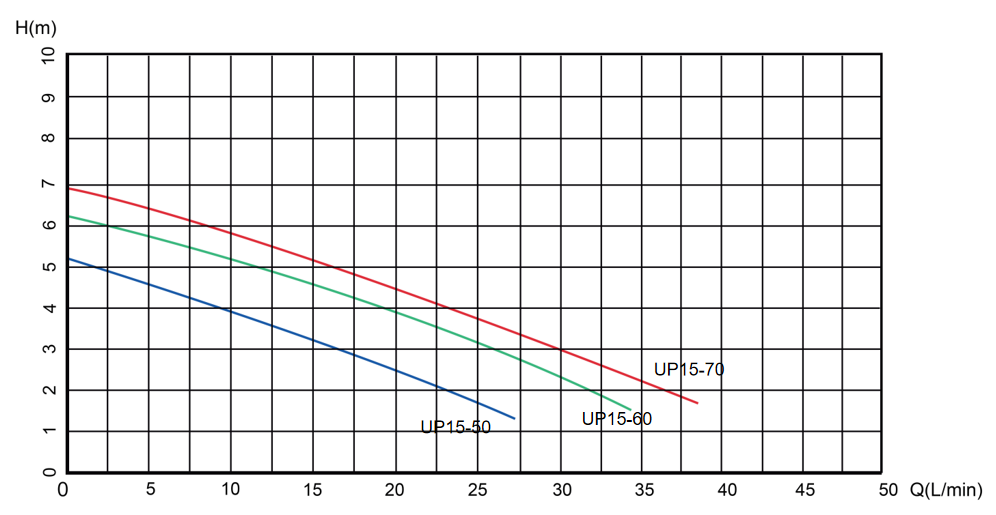

Performance Curves

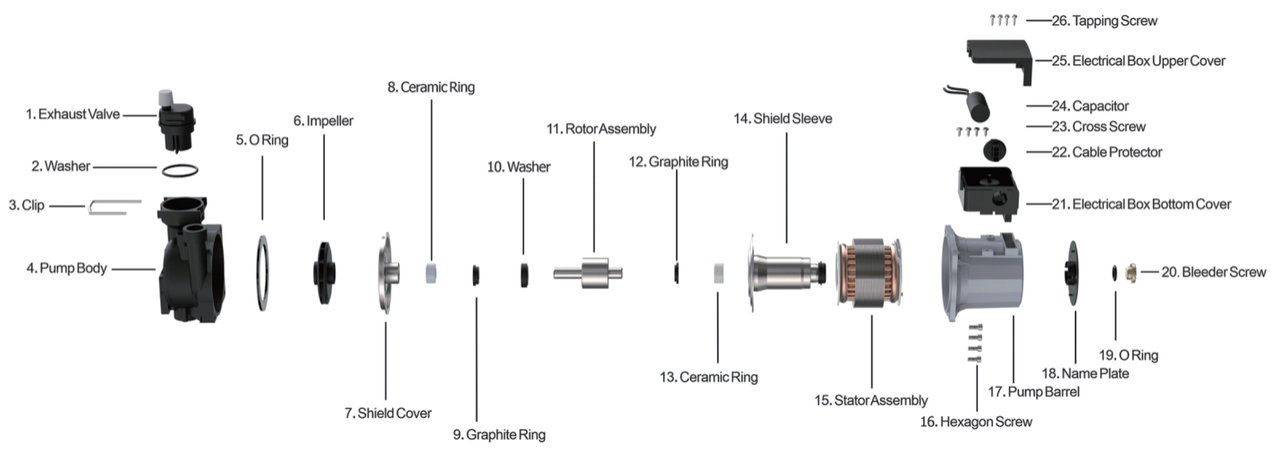

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
UP15-50
|
15
|
40
|
24
|
29
|
8
|
|
UP15-60
|
15
|
40
|
24
|
29
|
8
|
|
UP15-70
|
15
|
40
|
24
|
29
|
8
|
