Standard Heating Circulation Pumps
The LXP Series is a standard heating circulation pump designed for underfloor heating, radiators, and small heating systems.
It is primarily used for closed-loop hot water circulation, focusing on improving system thermal efficiency and maintaining balanced temperature distribution.
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawings
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Permanent Magnet Motor + Intelligent Variable Frequency Control
• Multiple Operating Modes: PP, CP, AUTO, and Night Setback Mode
• Easy Retrofit Design: Available in 130 mm and 180 mm installation lengths, with G1"–G2" connection sizes
Model Instruction
Technical Table
|
Pump Model
|
Power(W)
|
Max.Head (M)
|
Max.Flow (L/min)
|
Inlet/Outlet (G)
|
Pump Size: MM
|
||
|
L
|
B
|
A
|
|||||
|
LXP20-60-130
|
45
|
6.5
|
47
|
G1"
|
130
|
165
|
127
|
|
LXP20-80-130
|
60
|
8
|
54
|
G1"
|
130
|
165
|
127
|
|
LXP20-110-130
|
90
|
11
|
62
|
G1"
|
130
|
165
|
127
|
|
LXP20-130-130
|
120
|
13
|
69
|
G1"
|
130
|
165
|
127
|
|
LXP25-40-130
|
28
|
4
|
54
|
G1-1/2"
|
130
|
165
|
127
|
|
LXP25-60-130
|
45
|
6.5
|
54
|
G1-1/2"
|
130
|
165
|
127
|
|
LXP25-80-130
|
60
|
8
|
59
|
G1-1/2"
|
130
|
165
|
127
|
|
LXP25-110-130
|
90
|
11
|
70
|
G1-1/2"
|
130
|
165
|
127
|
|
LXP25-130-130
|
120
|
12
|
75
|
G1-1/2"
|
130
|
165
|
127
|
|
LXP25-40-180
|
28
|
4
|
54
|
G1-1/2"
|
130
|
165
|
127
|
|
LXP25-60-180
|
45
|
6.5
|
60
|
G1-1/2"
|
180
|
165
|
127
|
|
LXP25-80-180
|
60
|
8
|
67
|
G1-1/2"
|
180
|
165
|
127
|
|
LXP25-110-180
|
90
|
11
|
77
|
G1-1/2"
|
180
|
165
|
127
|
|
LXP25-130-180
|
120
|
12
|
87
|
G1-1/2"
|
180
|
165
|
127
|
|
LXP32-60-180
|
45
|
6
|
67
|
G2"
|
180
|
167
|
127
|
|
LXP32-70-180
|
60
|
6.5
|
77
|
G2"
|
180
|
167
|
127
|
|
LXP32-80-180
|
60
|
8
|
77
|
G2"
|
180
|
167
|
127
|
|
LXP32-90-180
|
90
|
9
|
90
|
G2"
|
180
|
167
|
127
|
|
LXP32-120-180
|
120
|
11
|
102
|
G2"
|
180
|
167
|
127
|
|
LXP25-160-180
|
200
|
16
|
142
|
G1-1/2"
|
180
|
167
|
127
|
|
LXP25-180-180
|
280
|
18
|
167
|
G1-1/2"
|
180
|
167
|
127
|
|
LXP25-220-180
|
370
|
22
|
192
|
G1-1/2"
|
180
|
167
|
127
|
|
LXP32-180-180
|
280
|
18
|
175
|
G2"
|
180
|
167
|
127
|
|
LXP32-220-180
|
370
|
22
|
192
|
G2"
|
180
|
167
|
127
|

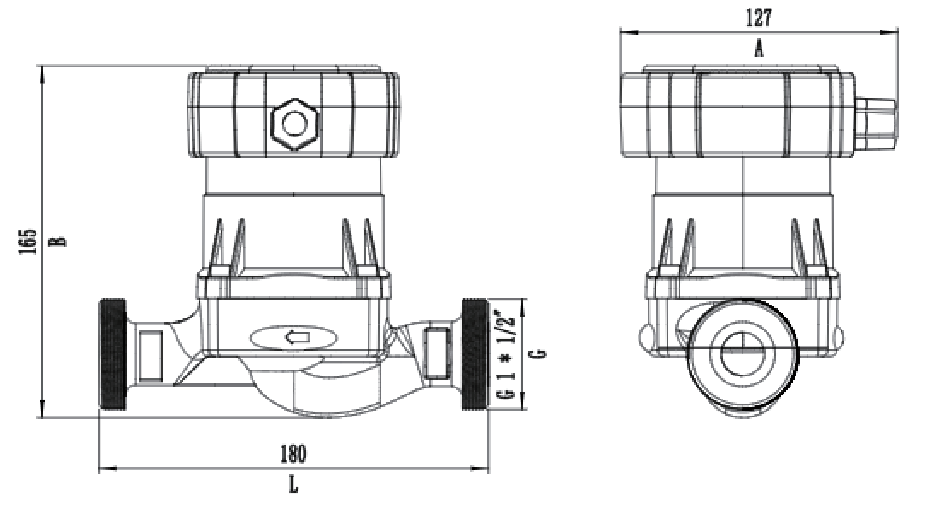

Dimensional Drawings

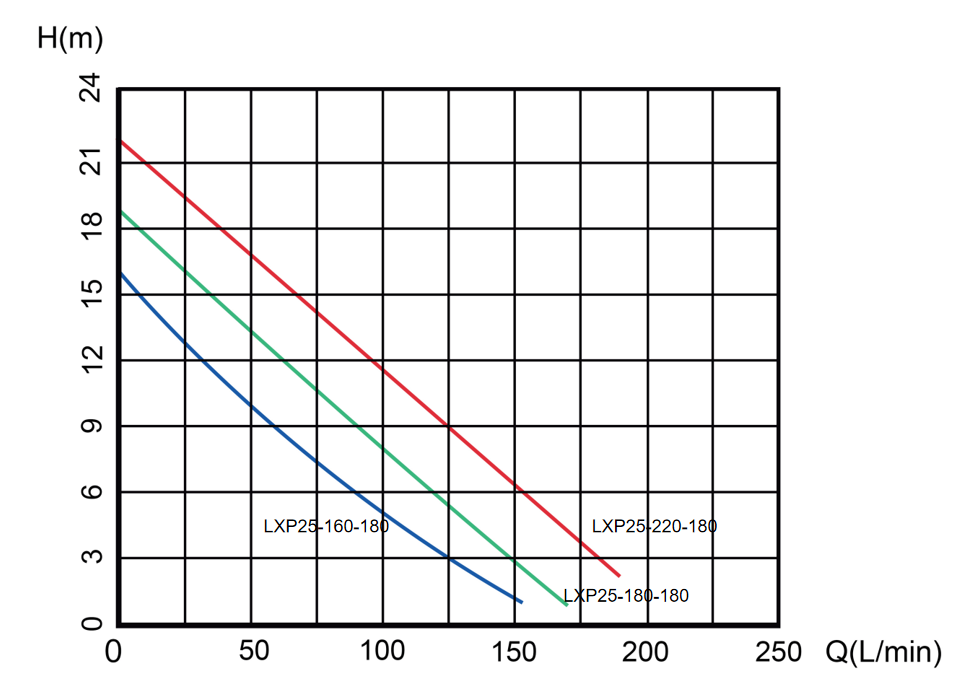

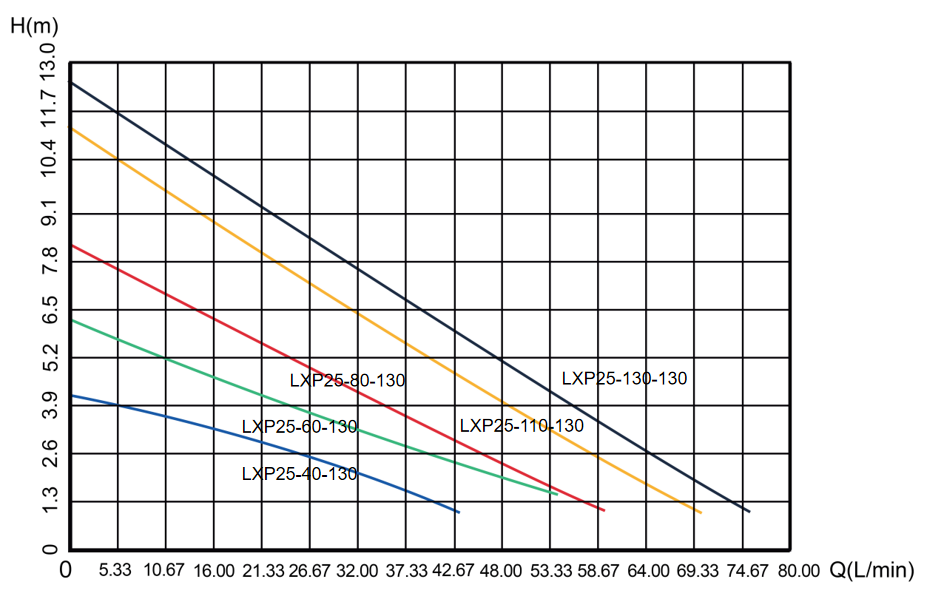

Performance Curves

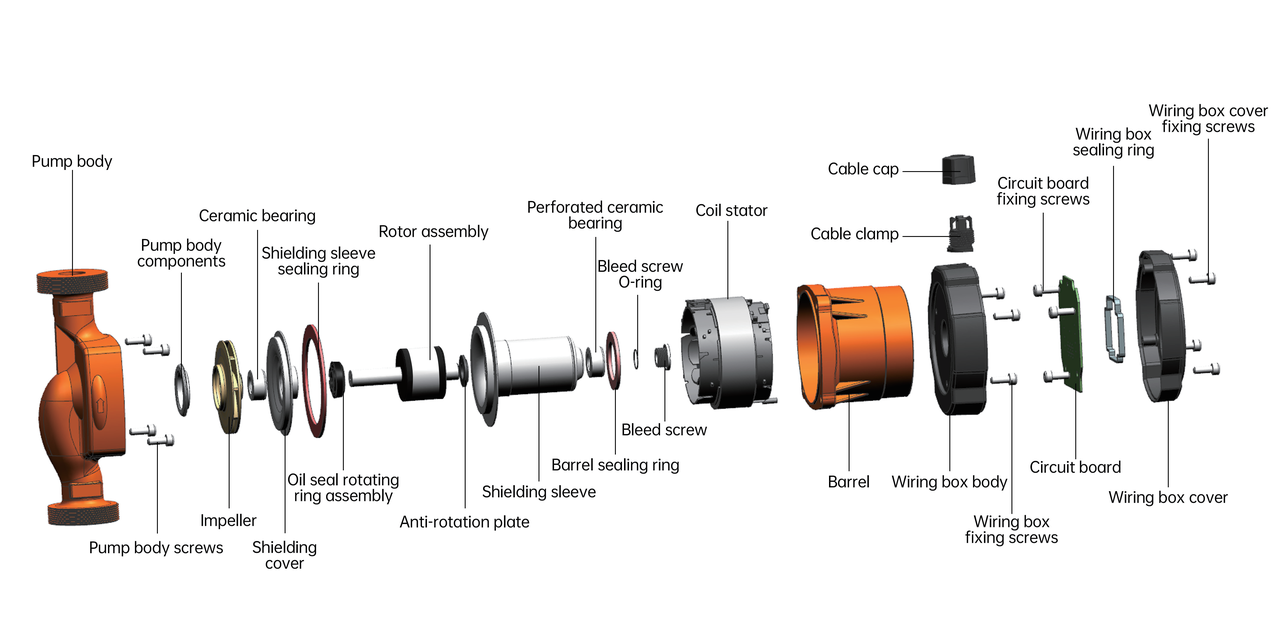

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
LXP25-40-130
|
21.7
|
31
|
30
|
38.4
|
8
|
|
LXP25-60-130
|
20.8
|
31
|
30
|
38.4
|
8
|
|
LXP25-80-130
|
21.75
|
31
|
30
|
38.4
|
8
|
|
LXP25-40-180
|
22.8
|
41
|
28.4
|
38.4
|
8
|
|
LXP25-60-180
|
21.8
|
41
|
28.4
|
38.4
|
8
|
|
LXP-80-180
|
22.95
|
41
|
28.4
|
38.4
|
8
|
|
LXP32-60-180
|
24.55
|
41
|
28.4
|
38.4
|
8
|
|
LXP32-80-180
|
25.45
|
41
|
28.4
|
38.4
|
8
|
