LPA
MOQ: 4 pcs
Standard Residential Booster Pumps
The LPA Series is suitable for pressure boosting in standard residential water supply applications, including pre-boosting for water heaters, as well as water supply in kitchens and bathrooms, detached houses, and top-floor apartments.
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawings
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
- Automatic Start/Stop Control
- Low Noise Operation
- Optional Pump Head Materials
- Supports OEM Customization: Voltage, plug, color, nameplate, packaging, and housing material

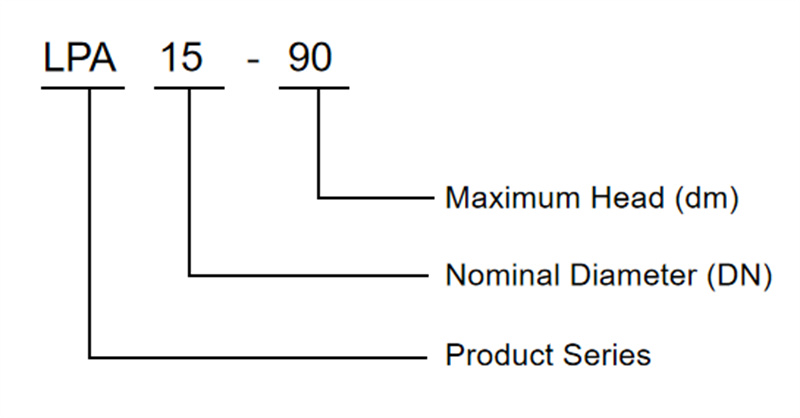

Model Instruction
Technical Table
|
Pump Model |
Power (W) |
Power (HP) |
Max.Head (M) |
Max.Flow (L/min) |
Inlet/Outlet (G) |
Pump Size:MM |
||
|
L |
A |
B |
||||||
|
LPA15-80 |
100 |
1/8 |
8 |
22 |
G3/4" |
160 |
109 |
130 |
|
LPA15-90 |
125 |
1/6 |
9 |
25 |
G3/4" |
160 |
109 |
130 |
|
LPA15-110 |
145 |
1/5 |
11 |
30 |
G3/4" |
160 |
123 |
140 |
|
LPA20-120 |
300 |
1/3 |
12 |
60 |
G1" |
195 |
126 |
155 |

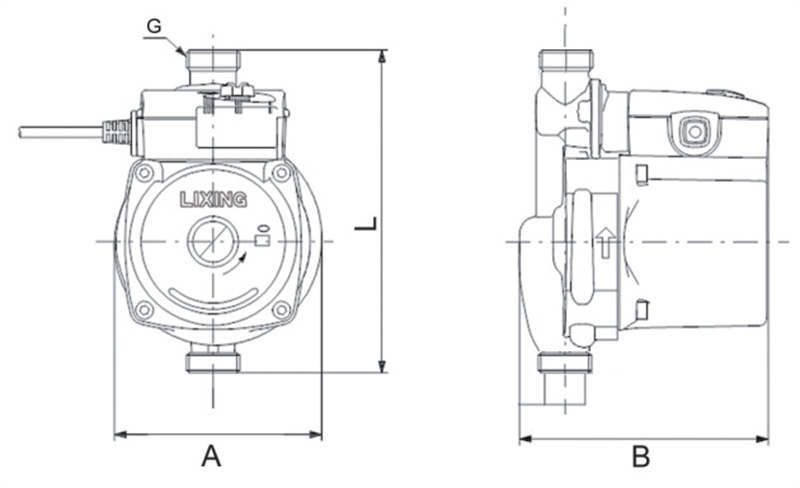

Dimensional Drawings

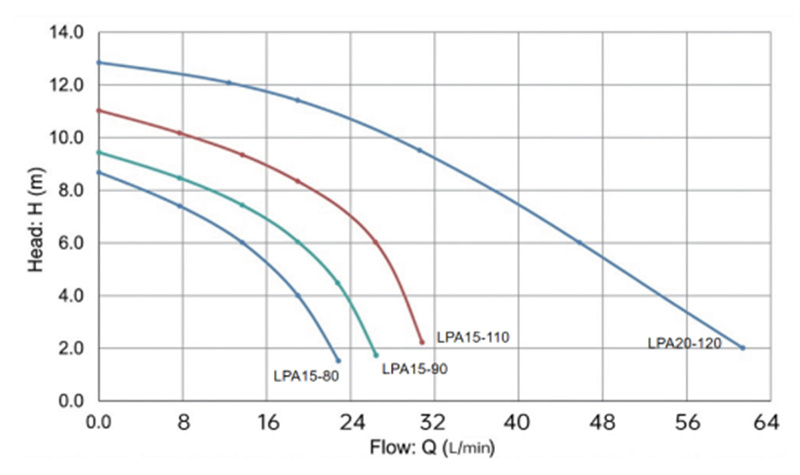

Performance Curves

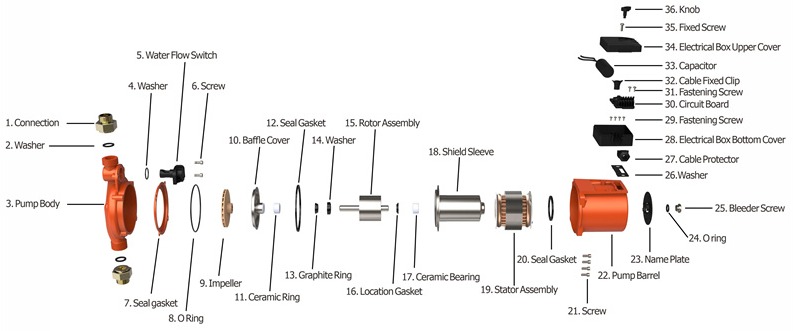

Exploded View
Package Information
|
Model |
GW（Kg） |
L(cm) |
W(cm) |
H(cm) |
Quantity (per carton) |
|
LPA15-80 |
21.05 |
40 |
24 |
29 |
8 |
|
LPA15-90 |
21.05 |
40 |
24 |
29 |
8 |
|
LPA15-110 |
23.35 |
40 |
24 |
29 |
8 |
|
LPA20-120 |
19.35 |
46.6 |
29.6 |
18.6 |
4 |
