LP
MOQ: 4 pcs
Flanged Circulation Pumps
The LP Series is designed for flange-connected applications, which are commonly used in system integration and engineering installations.
- Product Advantages
- Model Instruction
- Technical Table
- Dimensional Drawings
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Maximum Medium Temperature: Up to 110°C
• Flanged Connection: Facilitates easier pipeline installation and maintenance
• Stable Operation: Long maintenance intervals and reliable performance

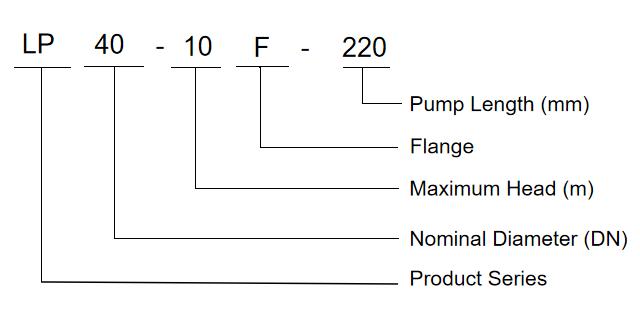

Model Instruction
Technical Table
|
Pump Model
|
Power(W)
|
Voltage(V)
|
DN
|
Max.Flow (m³/h)
|
Max.Head(M)
|
Pump Size: MM
|
|||||
|
L
|
L1
|
B
|
B1
|
H
|
H1
|
||||||
|
LP40-10F-220
|
370
|
220
|
40
|
10
|
12
|
220
|
110
|
165
|
93
|
190
|
65
|
|
LP50-10F-220
|
370
|
220
|
50
|
10
|
10
|
220
|
110
|
165
|
93
|
190
|
50
|
|
LP40-13F-220
|
550
|
220
|
40
|
12
|
13
|
220
|
110
|
165
|
93
|
230
|
65
|
|
LP50-13F-220
|
550
|
220
|
50
|
12
|
13
|
220
|
110
|
165
|
93
|
230
|
65
|
|
LP50-13F-250
|
750
|
220 / 380
|
50
|
12
|
13
|
250
|
140
|
200
|
115
|
230
|
80
|
|
LP40-13F-250
|
750
|
220 / 380
|
40
|
13
|
13
|
250
|
140
|
200
|
115
|
230
|
80
|
|
LP40-18F-250
|
1100
|
220 / 380
|
40
|
14
|
18
|
250
|
140
|
200
|
115
|
230
|
80
|
|
LP50-13F-280
|
1100
|
220 / 380
|
50
|
19
|
13
|
280
|
140
|
200
|
115
|
230
|
80
|
|
LP65-12F-300
|
1100
|
220 / 380
|
65
|
20
|
12
|
300
|
150
|
200
|
115
|
260
|
80
|
|
LP50-16F-280
|
1500
|
220 / 380
|
50
|
20
|
16
|
280
|
140
|
200
|
115
|
230
|
80
|
|
LP65-15F-300
|
1500
|
220 / 380
|
65
|
26
|
15
|
300
|
150
|
200
|
115
|
260
|
80
|
|
LP65-14F-300
|
2200
|
220 / 380
|
65
|
43
|
14
|
300
|
150
|
200
|
115
|
260
|
80
|
|
LP80-15F-300
|
2200
|
220 / 380
|
50
|
50
|
15
|
300
|
150
|
200
|
115
|
260
|
80
|

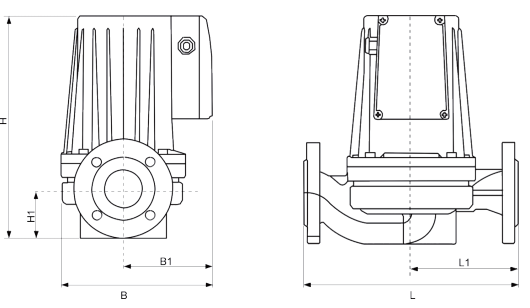

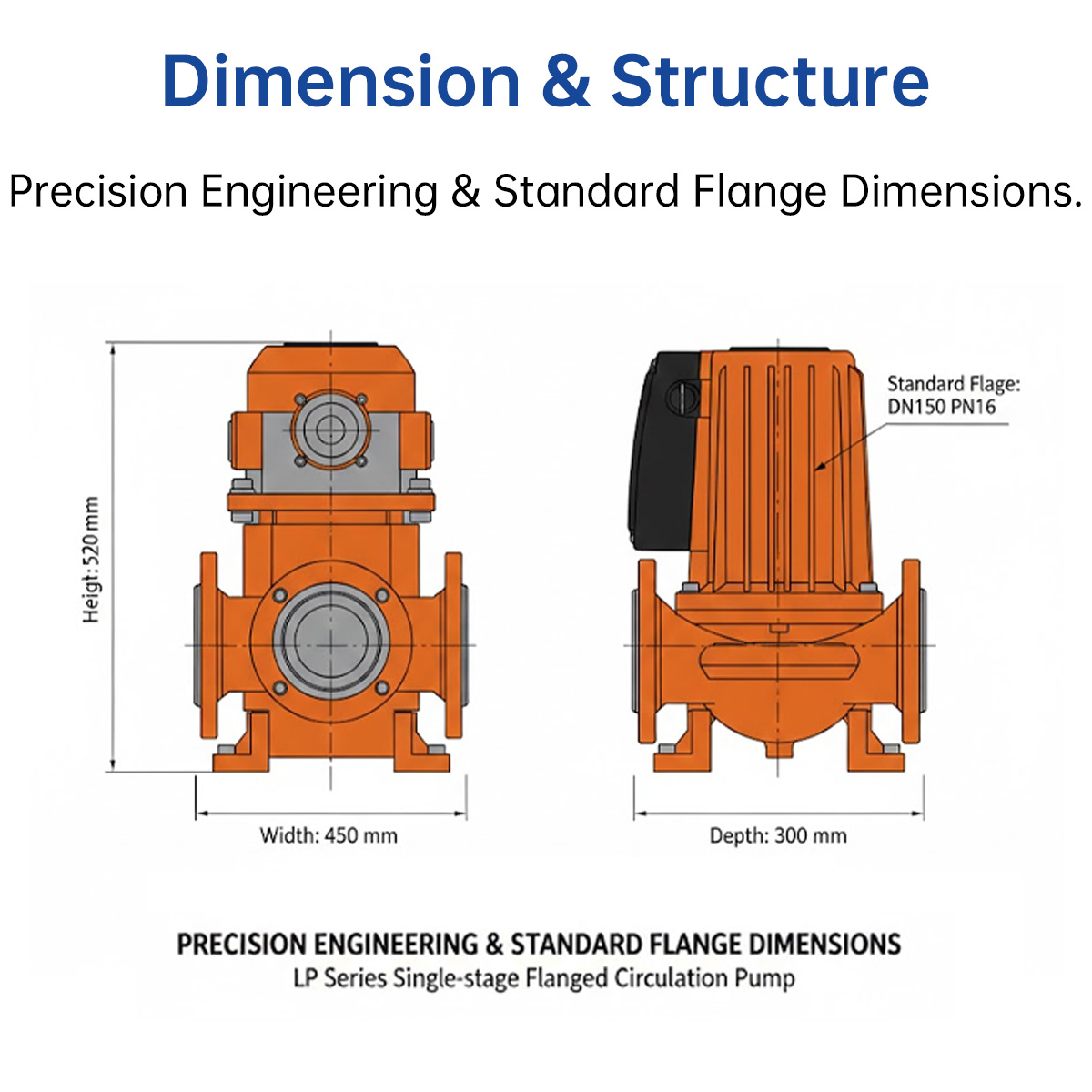

Dimensional Drawings

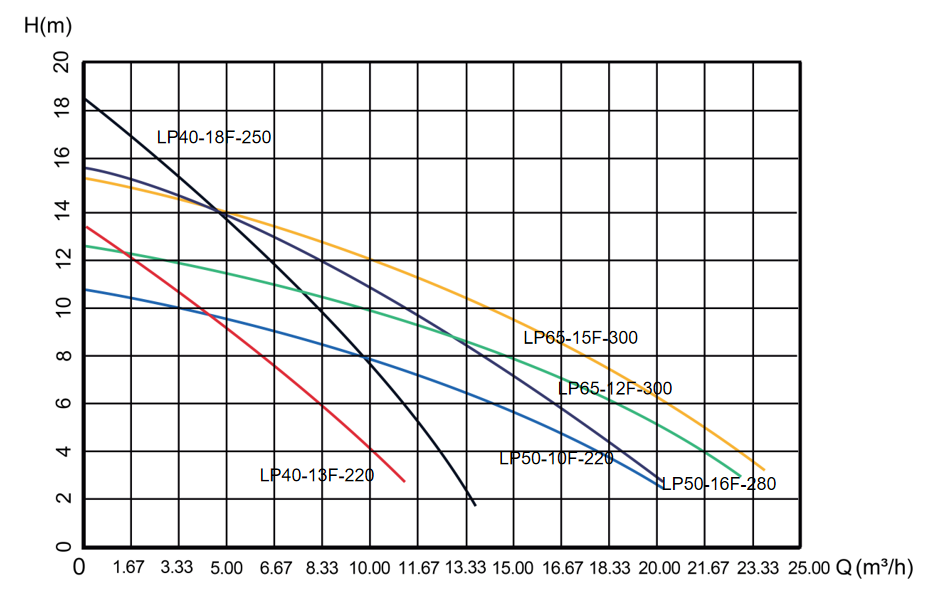

Performance Curves

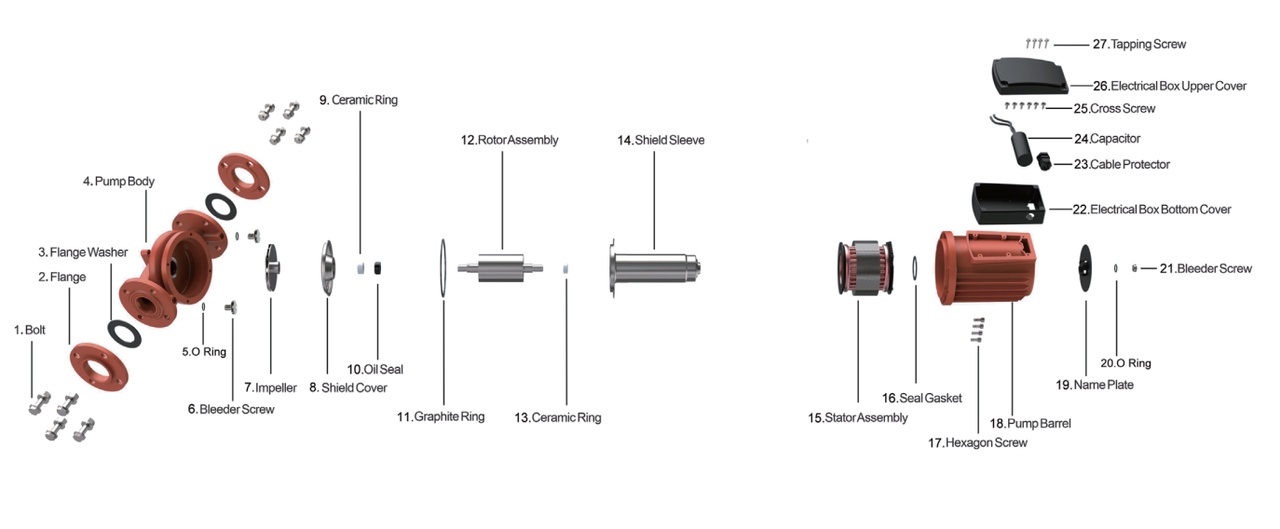

Exploded View
Package Information
|
Model
|
GW（Kg）
|
L(cm)
|
W(cm)
|
H(cm)
|
Quantity (per carton)
|
|
LP40-10F-220
|
11.6
|
25.7
|
19.5
|
28.5
|
1
|
|
LP50-10F-220
|
10.75
|
25.5
|
19.5
|
28.3
|
1
|
|
LP40-13F-220
|
12.55
|
25.5
|
19.5
|
28.3
|
1
|
|
LP50-13F-220
|
16.85
|
25.5
|
19.5
|
28.3
|
1
|
|
LP50-13F-250
|
16.7
|
29
|
22.5
|
32.5
|
1
|
|
LP40-13F-250
|
16
|
26
|
20
|
30
|
1
|
|
LP40-18F-250
|
17.5
|
28.5
|
25
|
32.3
|
1
|
|
LP50-13F-280
|
12.55
|
31.5
|
23.3
|
35.8
|
1
|
|
LP65-12F-300
|
21.85
|
33.5
|
24.5
|
36
|
1
|
|
LP50-16F-280
|
23.1
|
31.5
|
23.3
|
35.8
|
1
|
|
LP65-15F-300
|
22.9
|
30.5
|
21
|
34
|
1
|
|
LP65-14F-300
|
23.7
|
33.5
|
24.5
|
36
|
1
|
|
LP80-15F-300
|
24.15
|
33.5
|
24.5
|
36
|
1
|
