LXM
MOQ: 4 pcs
Three-Speed Circulation Pumps
The LXM Series is suitable for underfloor heating, wall-hung boiler systems, domestic hot water recirculation, and HVAC circulation applications.
- Product Advantages
- Model Instruction
- Technical Table
- Performance Curves
- Exploded View
- Package Information
- Related Products
Product Advantages
• Three-Speed Control
• Suitable for heating and domestic hot water circulation
• High-temperature resistant construction
• Designed for continuous and stable operation
• Compatible with standard installation dimensions
• Suitable for retrofit applications and distribution-channel customer requirements

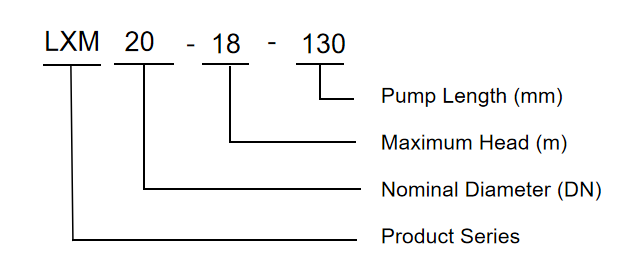

Model Instruction
Technical Table
|
Pump Model
|
Power
(W)
|
Max.Head (M)
|
Max.Flow (L/min)
|
Voltage
(V)
|
Inlet/Outlet (G)
|
Pump Size: MM
|
||
|
L
|
B
|
A
|
||||||
|
LXM20-18-130
|
40/60/80
|
10/14/17
|
40/47/52
|
AC 110-240 DC 24
|
G1"
|
130
|
138
|
127
|
|
LXM25-18-130
|
40/60/80
|
10/14/17
|
45/52/57
|
AC 110-240 DC 24
|
G1-1/2"
|
130
|
138
|
127
|
|
LXM25-18-180
|
40/60/80
|
10/14/17
|
42/50/62
|
AC 110-240 DC 24
|
G1-1/2"
|
180
|
138
|
127
|

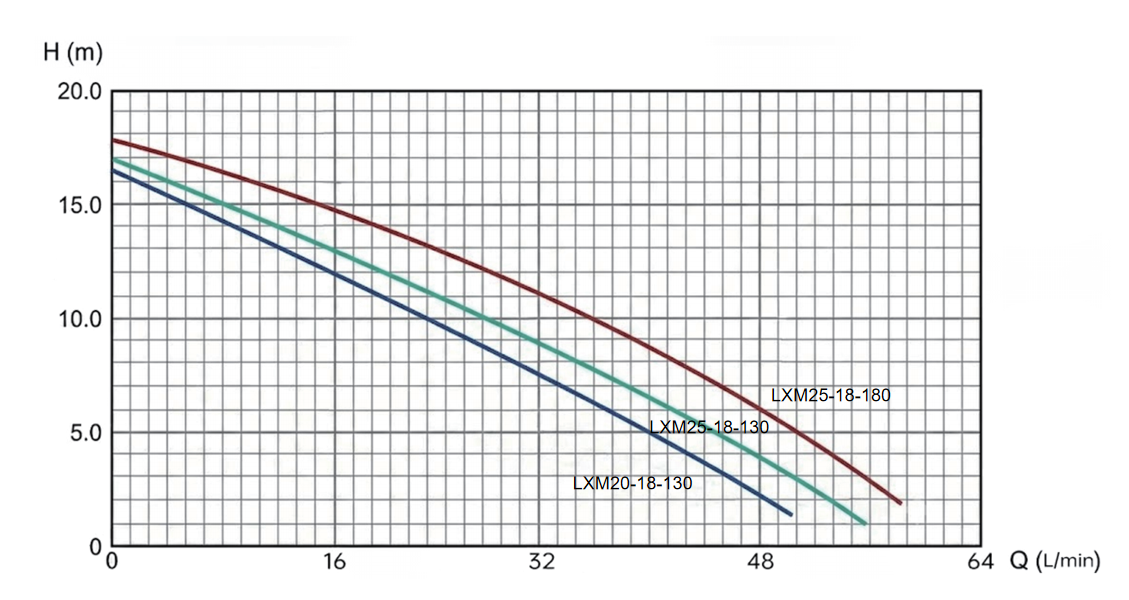

Performance Curves

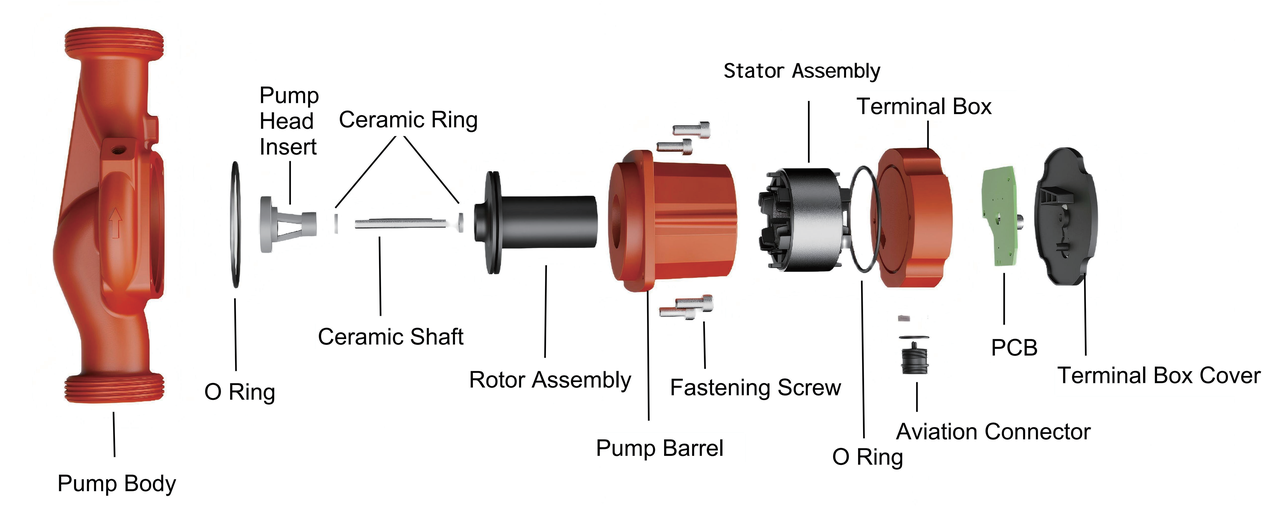

Exploded View
Package Information
|
Model
|
GW
（Kg）
|
L
(cm)
|
W
(cm)
|
H
(cm)
|
Quantity
(per carton)
|
|
LXM20-18-130
|
9.75
|
31.6
|
30.5
|
28
|
8
|
|
LXM25-18-130
|
15.35
|
31.6
|
30.5
|
28
|
8
|
|
LXM25-18-180
|
15.35
|
41
|
28
|
30
|
8
|
